Belden 1694A 0091000 75 Ohms SDI Coax, RG-6, 18 AWG Solid BC Conductor, 1000', PE Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMR, White
1694A 0091000 | 7B-1694A0091
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

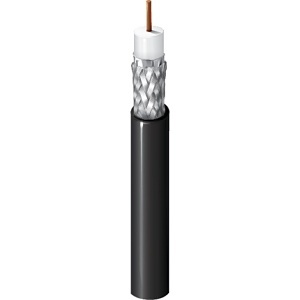

75 Ohm SDI Coax, RG-6, 18 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR.
Main Features
- 18 AWG Solid Bare Copper Conductor
- RG-6
- PE Insulation, Foil + 95% Tinned Copper Braid Shield
- Riser-CMR Rated
- PVC Jacket
General Information
Name: Belden 1694A 0091000 75 Ohms SDI Coax, RG-6, 18 AWG Solid BC Conductor, 1000', PE Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMR, White
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825358206
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-1694A0091 Brand Name Belden Manufacturer Part Number 1694A 0091000
American Wire Gauge 18AWG Application/Usage 6 Gb/s UHDTV, Digital Video, HD-SDI 1080p Cable Type Bare Copper Conductor Count 1 Conductor Material Bare Copper Impedance 75 ohms Jacket Material PVC Number of Conductors 1 Shielding Yes Solid or Stranded Solid
Operating Temperature (T-T) -30-75°C
Cable Length 1000' Color White Insulation Material PO Package Type Reel
Length 1000'
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor, Outdoor
