Image of AX-T1VK34
Shop all Altronix

Altronix T1VK34 4-Door Altronix/HID VertX Access and Power Integration Kit, Trove1V1 with AL600ULXB, ACM4, VR6, PDS8

T1VK34|AX-T1VK34
Shop all Altronix

Altronix T1VK34 4-Door Altronix/HID VertX Access and Power Integration Kit, Trove1V1 with AL600ULXB, ACM4, VR6, PDS8

T1VK34|AX-T1VK34
Key Features
  • 12 or 24VDC power supply/charger.
  • Accommodates up to Two VertX V100, V200, V300, V1000, V2000 or Aero X100, X200, X300, X1100 modules
  • Convenient knockout configuration: One double knockout 1.948" (1-1/2" Conduit) / 1.701" (1-1/4" Conduit)
Key Features
  • 12 or 24VDC power supply/charger.
  • Accommodates up to Two VertX V100, V200, V300, V1000, V2000 or Aero X100, X200, X300, X1100 modules
  • Convenient knockout configuration: One double knockout 1.948" (1-1/2" Conduit) / 1.701" (1-1/4" Conduit)

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • 12 or 24VDC power supply/charger.
  • Accommodates up to Two VertX V100, V200, V300, V1000, V2000 or Aero X100, X200, X300, X1100 modules
  • Convenient knockout configuration: One double knockout 1.948" (1-1/2" Conduit) / 1.701" (1-1/4" Conduit)
Altronix

Altronix T1VK34 4-Door Altronix/HID VertX Access and Power Integration Kit, Trove1V1 with AL600ULXB, ACM4, VR6, PDS8

T1VK34 | AX-T1VK34

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

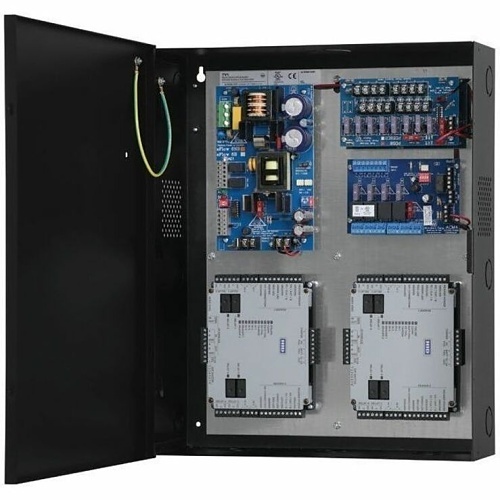

Introducing the Altronix T1VK34 4-Door Access and Power Integration Kit, designed for seamless security management. This comprehensive kit features a Trove1 enclosure and a TV1 VertX/Altronix backplane, equipped with a robust 12 or 24V DC power supply/charger delivering 6A. It includes a voltage regulator and a dual input fused power distribution module, ensuring reliable performance. The kit can support up to two HID Aero/VertX modules, allowing control of four doors from a single unit. Simplify your installation process and reduce labor costs with this efficient solution. Upgrade your security system today!

Main Features

  • 12 or 24VDC power supply/charger.
  • Accommodates up to Two VertX V100, V200, V300, V1000, V2000 or Aero X100, X200, X300, X1100 modules
  • Convenient knockout configuration: One double knockout 1.948" (1-1/2" Conduit) / 1.701" (1-1/4" Conduit)
  • Nine double knockouts 1.362" (1" Conduit) / 1.115" (3/4" Conduit)
  • 16 AWG galvanized steel backplane simplifies board layout and wire management
  • Enclosure accommodates up to Two 12VDC/7AH batteries
  • Supervision AC Fail, Battery Fail and Battery Presence
  • Agency Listings All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
  • UL: UL294 - Access Control System
  • cUL: CAN/ULC - s319-05 - Electronic Access Control Systems

General Information

Name: Altronix T1VK34 4-Door Altronix/HID VertX Access and Power Integration Kit, Trove1V1 with AL600ULXB, ACM4, VR6, PDS8
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Installation Instructions
Manufacturer Brochure
