Overview
Specifications
Documents
Product Overview

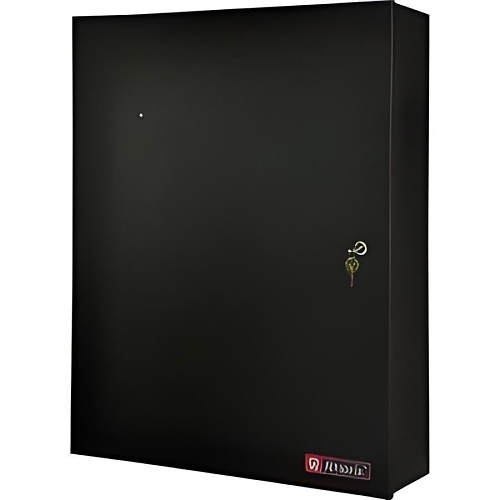

Discover the Altronix T3M77CK1D, a comprehensive solution for your access control needs. This kit features the Trove3 enclosure paired with the TM3 Altronix and Mercury backplane, providing two robust 24VDC at 10A power supply/chargers. It includes eight PTC protected output access control modules and eight dual output power distribution modules, ensuring reliable performance. With the capability to support various Mercury board combinations for up to sixteen doors, this system streamlines board layout and wire management, significantly cutting down installation time and labor costs. Elevate your security setup today with the Altronix T3M77CK1D!
Main Features
- 24VDC power supply/chargers
- Accommodates the following Mercury controllers: Mercury: LP1501, LP1502, LP2500, LP4502, MR16IN, MR16OUT, MR50, MR52, MR62e, MUX8
- Convenient knockout configuration
- One (1) single knockout 2.415” (2” Conduit)
- One (1) double knockout 1.948” (1.5” Conduit) / 1.701” (1.25” Conduit)
- Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit)
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- Supervision: AC Fail, Battery Fail and Battery Presence
General Information
Name: Altronix T3M77CK1D Access and Power Integration Kit T3MK7716SD, K1, EFLOW, PTC, 115V
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number AX-T3M77CK1D Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number T3M77CK1D Product Line Trove Product Model T3M77CK1D Product Name Altronix T3M77CK1D T3MK7716SD/K1/EFLOW/PTC/115V Product Series Trove Wired Kit Product Type Power Supply Sector Access Control
-
Input Voltage 115V AC
