AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel
Q9216-SLV|Z4-01766001
Color: Silver
AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel
Q9216-SLV|Z4-01766001
Color: Silver
Key Features
What's Included
- Anti-ligature, robust (IK11)
- Compact design – easy to install
- Corner camera – no blind spots
Key Features
What's Included
- Anti-ligature, robust (IK11)
- Compact design – easy to install
- Corner camera – no blind spots
.jpg)
Key Features
What's Included
- Anti-ligature, robust (IK11)
- Compact design – easy to install
- Corner camera – no blind spots
Axis Communications
AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel
Q9216-SLV | Z4-01766001
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Network Video Recorders (NVRs)
ADI # VM-0NVR8CH2T
MODEL # VM-0NVR8CH2T
VM-0NVR8CH2T|VM-0NVR8CH2T
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

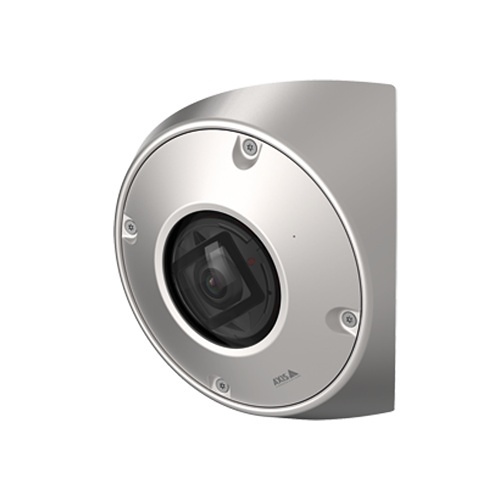

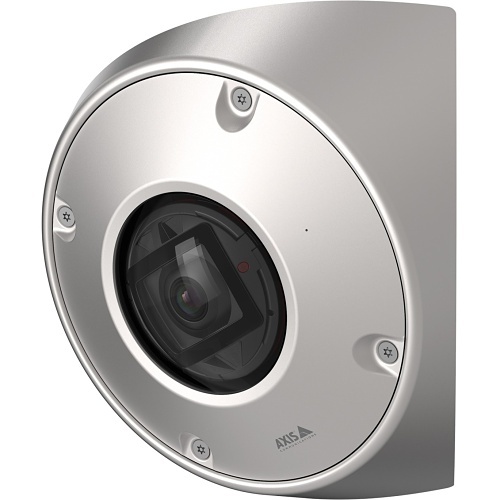

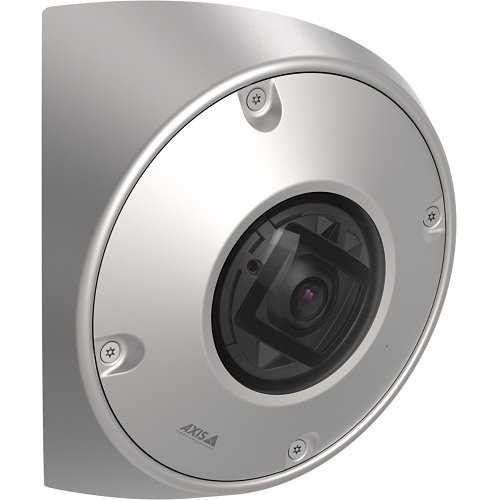

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera specially designed to provide a wide field-of-view and ensure no area is left uncovered. Available in white and elegant stainless-steel, this low power consuming camera is ideal for high-security installations such as in prisons and psychiatric wards.
Main Features
- Anti-ligature, robust (IK11)
- Compact design – easy to install
- Corner camera – no blind spots
- WDR and invisible IR (940 nm)
- Zipstream supporting H.264 and H.265
General Information
Name: AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel
Category: Axis Communications, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 7331021067493
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-01766001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 01766-001 Product Line Q Product Model Q9216-SLV Product Name AXIS Q9216-SLV STEEL Product Series Q92 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 3.53 lb
-
Aperture f/2.1 Built-in Microphone Yes Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Horizontal, Vertical Lens Mount Type M12 Lens Type Fixed Maximum Aperture f/2.0 Maximum Frame Rate 30 fps Minimum Focal Length 2.4mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.265, MJPEG, MPEG-4
-
Image Sensor Type CMOS Night Vision Distance 49.21 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP6K9K NDAA Compliant Yes TAA Compliant Yes
-
Image Sensor Size 1/2.5" Maximum Video Resolution 2304 x 1728
-
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 85% Operating Temperature (T-T) -20-50°C
-
Longest Shutter Speed 1/5 Second Minimum Illumination 0.05 lux Shortest Shutter Speed 1/32500 Second
-
HDMI Yes Network (RJ-45) Yes
-
Focal Length 2.4mm Lens Included Yes Maximum Focal Length 2.40 mm
-
Memory Card Supported Yes
-
Remote Management Yes
-
ADI Part Number Replaces Z4-0710001 Model Number Replaces 0710-001
-
Color Silver Depth 6.9" Durability Vandal Resistant Form Factor Dome Height 5.2" Width 8.2"
-
Input Voltage 12V DC Maximum Power Consumption 11W Power over Ethernet (PoE) Yes
-
Length 6.9" Mount Type Conduit Mount, Corner Mount
-
Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Certifications EN 50130-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 22 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP69, IEC/EN 62262 IK10+ (50J), ISO 20653 IP6K9K, NEMA 250 Type 4X Features Day/Night, Defog, HTTPS Encryption, Microphone In, Password Protection, PTZ, SD Card Local Storage, White Balance, Wide Dynamic Range Impact Protection Rating IK11 Indoor/Outdoor Outdoor Package Contents - Q9216-SLV Network Camera
- Installation Guide
- Windows decoder 1-User License
- AVHS Authentication Key
- AXIS Device Microphone A
- AXIS Connector A 4-p=Pin 2.5 Straight
- and more below
