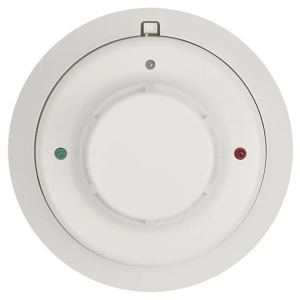

System Sensor 2W-B Photoelectric i3 Series Smoke Detector, 2-Wire, White

2W-B | BK-2WB

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

Installation ease. The i3 line redefines installation ease with its plug-in design. This allows an installer to pre-wire bases (included with heads). The large wire entry port and in-line terminals provide ample room for neatly routing the wiring inside the base. The base accommodates a variety of back box mounting methods as well as direct mounting with drywall anchors. To complete the installation, i3 heads plug into the base with a simple Stop-Drop ’N Lock™ action. Intelligence. i3 detectors offer a number of intelligent features to simplify testing and maintenance. Drift compensation and smoothing algorithms are standard with the i3 line to minimize nuisance alarms. 2-wire i3 detectors can generate a remote LEDindicated maintenance signal when connected to the 2W-MOD2 loop test/maintenance module or a panel equipped with the i3 protocol. The SENS-RDR, a wireless device, displays the sensitivityof i3 detectors in terms of percent-per-foot obscuration. Instant inspection. The i3 series provides wide-angle red and green LED indicators for instant inspection of the detector’s condition: normal standby, out-of-sensitivity, alarm, or freeze trouble. When connected to the 2W-MOD2 loop test/maintenance module or a panel with the i3 protocol, the EZ Walk loop test feature is available on 2-wire i3 detectors. This feature verifies the initiating loop wiring by providing LED status indication at each detector.

Main Features

Plug-in detector line, mounting base included
LargeWire entry port
In-line terminals with SEMS screws
Mounts to octagonal and single-gang back boxes, 4-square back boxes, or direct to ceiling
Stop-Drop N Lock attachment to base
Built-in remote maintenance signaling
Drift compensation and smoothing algorithms
Wide-angle, dual-color LED indication
Loop testing via EZ Walk feature
Built-in test switch

General Information

Name: System Sensor 2W-B Photoelectric i3 Series Smoke Detector, 2-Wire, White

Category: System Sensor, Fire, Fire Detection Devices & Accessories, Smoke Detectors

UPC Code: 783863017599

Country of Origin: Mexico. Country of origin is subject to change.

Specifications

: ADI Part Number BK-2WB Brand Name System Sensor Manufacturer Honeywell International, Inc Manufacturer Part Number 2WB Package Length 5.900000000 Product Model 2W-B Product Name i3 2W-B Smoke Detector Product Series i3 Product Type Smoke Detector

: Connectivity Technology Wired Detectable Medium Fire Sensing Technology Photoelectric Sensor Type Photoelectric

: UL Listed Yes

: Status Indicators Yes

: Color White Form Factor Ceiling Mount Height 2" Weight 6.30oz

: Input Voltage 24V DC

: Diameter 5" Mount Type Ceiling Mount

: Certifications UL 268 Country of Origin MX Features 85 dB sounder, Drift compensation and smoothing algorithms, Dual-color LEDs, Flexible mounting options, Form C relay, In-line terminals, Isolated thermal sensor, Plug-in design (base included), Remote maintenance signaling, Removable cover and chamber, Simplified sensitivity measurement, Stop-Drop N Lock attachment to the base
