Chief OB1U Over-The-Whiteboard Interactive Display Wall Mount for 42-100" Displays, VESA Flat Panel Mount, Silver
OB1U|CJ-OB1U
Chief OB1U Over-The-Whiteboard Interactive Display Wall Mount for 42-100" Displays, VESA Flat Panel Mount, Silver
OB1U|CJ-OB1U
Key Features
What's Included
- Acco mmodates typical large displays between 50-80" andVESA up to 1020 - 500 mm, specify FHB7036 bracket to extend to VESA 1020 - 600 mm
- Heavy-dutyWeight capacity of 310 lbs (140.6 kg)
- Display height adjustment range of 26" (660 mm)
Key Features
What's Included
- Acco mmodates typical large displays between 50-80" andVESA up to 1020 - 500 mm, specify FHB7036 bracket to extend to VESA 1020 - 600 mm
- Heavy-dutyWeight capacity of 310 lbs (140.6 kg)
- Display height adjustment range of 26" (660 mm)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Acco mmodates typical large displays between 50-80" andVESA up to 1020 - 500 mm, specify FHB7036 bracket to extend to VESA 1020 - 600 mm
- Heavy-dutyWeight capacity of 310 lbs (140.6 kg)
- Display height adjustment range of 26" (660 mm)
Chief by Legrand
Chief OB1U Over-The-Whiteboard Interactive Display Wall Mount for 42-100" Displays, VESA Flat Panel Mount, Silver
OB1U | CJ-OB1U
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

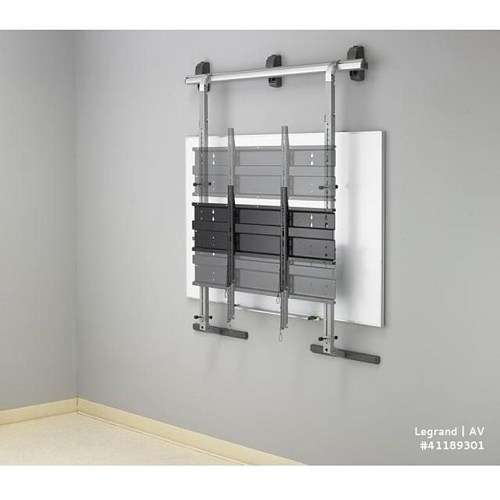

The Over-the-Whiteboard Interactive Display Mount allows for easy installation and adjustment of heavy interactive flat panel displays over existing chalkboards or whiteboards. The mount comes largely pre-assembled with minimal hardware, reducing installation time. It also provides height variability to accommodate younger children or those seated at lower levels.
Main Features
- Acco mmodates typical large displays between 50-80" andVESA up to 1020 - 500 mm, specify FHB7036 bracket to extend to VESA 1020 - 600 mm
- Heavy-dutyWeight capacity of 310 lbs (140.6 kg)
- Display height adjustment range of 26" (660 mm)
- Interface brackets mount directly to display, then hang on single rail-style cross bracket, eliminating need to remove display from box prior to installation
- Installs into various wall types (wood, concrete, steel, cinder-block)
- Flexible wall assembly anchoring points ensure a minimum of two studs are used - three brackets for 16" on-center studs, or two brackets for 24" on-center studs are included
- Integrated lateral shift allows for easy adjustment left or right
- When installed, mount allows for a minimum of 4" (102mm) clearance from wall
- Plumb adjustment up to 1.5° to compensate for uneven walls
- Telescoping legs allow mount to be adjusted easily around classroom obstacles
General Information
Name: Chief OB1U Over-The-Whiteboard Interactive Display Wall Mount for 42-100" Displays, VESA Flat Panel Mount, Silver
Category: Chief by Legrand, Pro AV, Commercial Displays, Pro Display Accessories & Mounts
UPC Code: 841872172026
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number CJ-OB1U Brand Name Chief by Legrand Manufacturer Legrand Group Manufacturer Part Number OB1U Product Model OB1U Product Name Over-the-Whiteboard Interactive Display Mount Product Series OB1 Product Type Wall Mount
-
Device Supported Interactive Display Maximum Load Capacity 309.97 lb
-
TAA Compliant No
-
Color Silver Depth 6.3" Height 75.1" VESA Mount Standard 1020 x 500, 400 x 100 Width 55.3"
-
Maximum Screen Size Supported 100" Minimum Screen Size Supported 42" Mount Type Wall Mount Number of Displays Supported 1
-
Limited Warranty 10-Year
-
Country of Origin CN Package Contents - Over-the-Whiteboard Interactive Display Mount
- Brackets
