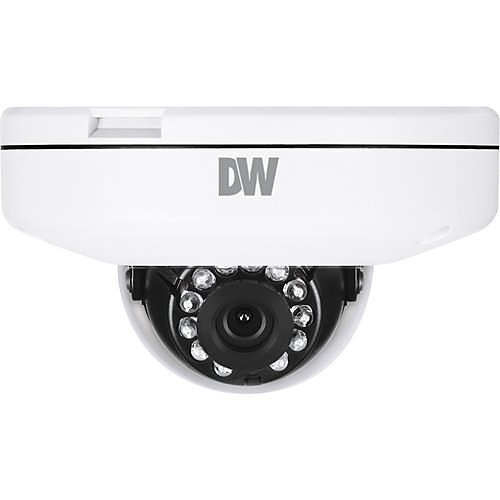

Digital Watchdog DWC-MPF2WI4TW MEGApix IVA+ 2MP Ultra Low-Profile IR Vandal Dome IP Camera, 4mm Fixed Lens, White
DWC-MPF2WI4TW|6K-MPF2WI4TW
Focal Length: 4.0 mm
Effective Camera Resolution: 2MP
Digital Watchdog DWC-MPF2WI4TW MEGApix IVA+ 2MP Ultra Low-Profile IR Vandal Dome IP Camera, 4mm Fixed Lens, White
DWC-MPF2WI4TW|6K-MPF2WI4TW
Focal Length: 4.0 mm
Effective Camera Resolution: 2MP
Key Features
- 2.1MP/1080P sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
Key Features
- 2.1MP/1080P sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
Key Features
- 2.1MP/1080P sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
Digital Watchdog
Digital Watchdog DWC-MPF2WI4TW MEGApix IVA+ 2MP Ultra Low-Profile IR Vandal Dome IP Camera, 4mm Fixed Lens, White
DWC-MPF2WI4TW | 6K-MPF2WI4TW
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
This MEGApix IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes 2.8mm and 4.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated, IK-10 impact-resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Main Features
- 2.1MP/1080P sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens (DWC-MPF2Wi28TW) 4.0mm fixed lens (DWC-MPF2Wi4TW)
- Ultra low-profile vandal dome camera for discrete installation
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
General Information
Name: Digital Watchdog DWC-MPF2WI4TW MEGApix IVA+ 2MP Ultra Low-Profile IR Vandal Dome IP Camera, 4mm Fixed Lens, White
Category: Digital Watchdog, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 812226033249
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
-
ADI Part Number 6K-MPF2WI4TW Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-MPF2WI4TW Product Line MEGApix Product Model DWC-MPF2Wi4TW Product Name MEGApix IVA 2.1MP/1080p ultra low-profile vandal dome IP camera with fixed lens Product Series MF2 Product Type Network Camera Weight 14.72 oz
-
Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal Lens Type Fixed Maximum Aperture f/2.6 Maximum Frame Rate 30 fps Minimum Focal Length 4mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 50 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 NDAA Compliant Yes
-
Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 10-90% (Non-condensing)
-
Longest Shutter Speed 1/15 Second Minimum Illumination 0.0 lux (B/W)|0.09 lux (color)|0.25 lux (color) Shortest Shutter Speed Off|x15|x2|x3|x4|x5|x6|x7.5
-
Network (RJ-45) Yes
-
Focal Length 4.0 mm Lens Included Yes Maximum Focal Length 4 mm
-
Remote Management Yes
-
Color White Durability Weather Resistant Form Factor Dome Material Aluminum Die-cast
-
Input Voltage 12V DC
-

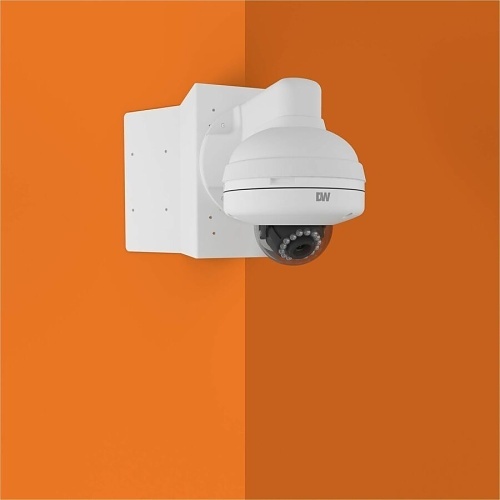

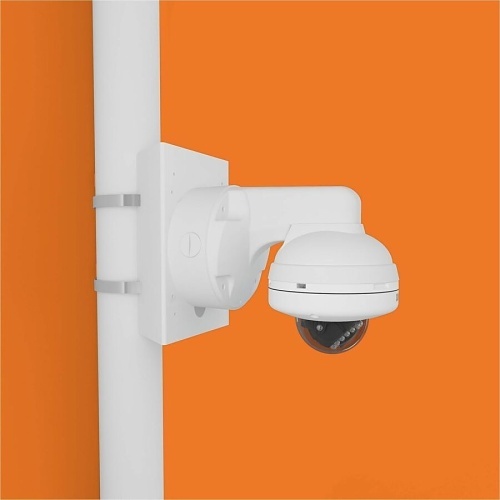

Mount Type Ceiling Mount, Wall Mount
-
Storage Type Memory Card
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Country of Origin VN Environmental Certification RoHS Environmentally Friendly Yes Features 3D Digital Noise Reduction, Auto Flip, Back Light Compensation (BLC), Defog, Gain Control, Highlight Compensation (HLC), Human Detection, Mirror, Noise Detection, Password Protection, Privacy Masking, Vehicle Detection, White Balance Impact Protection Rating IK10
