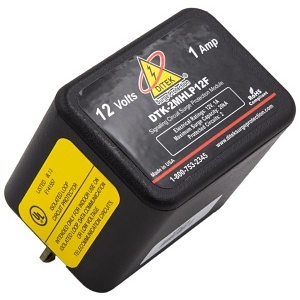

DITEK DTK-2MHLP12F Data and Signaling Circuit Surge Protection Module for 12V Circuits
DTK-2MHLP12F|DK-2MHLP12F
DITEK DTK-2MHLP12F Data and Signaling Circuit Surge Protection Module for 12V Circuits
DTK-2MHLP12F|DK-2MHLP12F
Key Features
- Protects two pairs per module
- Exclusive load removal feature
- Multi-stage, SAD technology, hybrid design, provides the best possible protection
Key Features
- Protects two pairs per module
- Exclusive load removal feature
- Multi-stage, SAD technology, hybrid design, provides the best possible protection
Key Features
- Protects two pairs per module
- Exclusive load removal feature
- Multi-stage, SAD technology, hybrid design, provides the best possible protection
DITEK
DITEK DTK-2MHLP12F Data and Signaling Circuit Surge Protection Module for 12V Circuits
DTK-2MHLP12F | DK-2MHLP12F
Please sign in to view pricing and availability and to add to cart.
Accessories
Surge Protection Modules
ADI # DK-2MHLP12BW
MODEL # DTK-2MHLP12BWB
DTK-2MHLP12BWB|DK-2MHLP12BW
Sign In for Dealer Pricing
Surge Protection Modules
ADI # DK-2MHLP12FW
MODEL # DTK-2MHLP12FWB
DTK-2MHLP12FWB|DK-2MHLP12FW
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
The DTK-2MHLP12F provides surge protection with exclusive load removal technology for two 12V alarm system loop circuits. With required snap-track bases, protect up to 10 pairs with a common ground.
Main Features
- Protects two pairs per module
- Exclusive load removal feature
- Multi-stage, SAD technology, hybrid design, provides the best possible protection
- Field replaceable, modular edge card connection design with a single point ground for fast installation, saves time
- Six voltage levels available to protect all types of voice/data applications
- Hard-wired multi-base mounting system allows you to protect up to ten pairs with a common ground. See next page for base part numbers
- Suitable for use on both AC and DC circuits
General Information
Name: DITEK DTK-2MHLP12F Data and Signaling Circuit Surge Protection Module for 12V Circuits
Category: DITEK, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code: 782980519450
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number DK-2MHLP12F Brand Name DITEK Manufacturer DITEK Corporation Manufacturer Part Number DTK-2MHLP12F Product Model DTK-2MHLP12F Product Name DTK-2MHLP12F Surge Protector Module Product Series 2MHLP Product Type Surge Protector Module Weight 1.20oz
-
Connectivity Technology Wired Dataline Protection Voice/Data
-
NDAA Compliant Yes TAA Compliant Yes
-
Operating Temperature (T-T) -40-158°F
-
Receptacles Terminal Block
-
Height 1.9" Width 1.4"
-
Input Voltage 12V AC
-
Limited Warranty 10-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes
