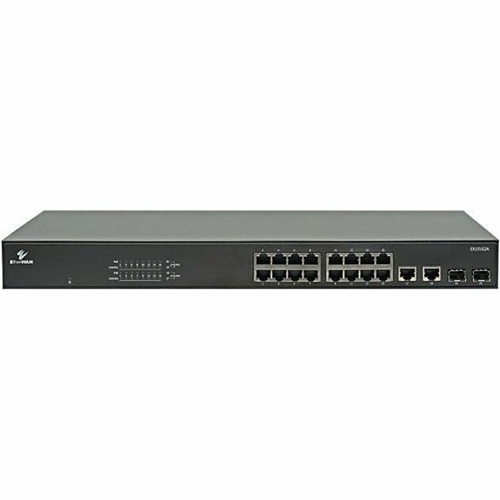

EtherWAN EX19162A Unmanaged 16-Port Gigabit PoE Ethernet Switch, 2-Port SFP, 2-Port RJ45
EX19162A|ET-EX19162A
EtherWAN
EtherWAN EX19162A Unmanaged 16-Port Gigabit PoE Ethernet Switch, 2-Port SFP, 2-Port RJ45
EX19162A|ET-EX19162A
Key Features
What's Included
- Total PoE power budget of 250W
- Overloading protection
- Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices
Key Features
What's Included
- Total PoE power budget of 250W
- Overloading protection
- Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Total PoE power budget of 250W
- Overloading protection
- Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices
EtherWAN
EtherWAN EX19162A Unmanaged 16-Port Gigabit PoE Ethernet Switch, 2-Port SFP, 2-Port RJ45
EX19162A | ET-EX19162A
Please sign in to view pricing and availability and to add to cart.
Recommended
0E-16PGIGUN | 0E-16PGIGUN
0E-16PGIGUN | 0E-16PGIGUN
Sign In for Dealer Pricing
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WattBox
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
EtherWAN's EX19162A is a 20-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19162A is equipped with 16 10/100/1000BASE-T(X) PoE+ ports along with 4 gigabit uplink ports (2 RJ45 and 2 SFP). With full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 250W, the EX19162A is the perfect solution for security networking.
Main Features
- Total PoE power budget of 250W
- Overloading protection
- Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices
General Information
Name: EtherWAN EX19162A Unmanaged 16-Port Gigabit PoE Ethernet Switch, 2-Port SFP, 2-Port RJ45
Category: EtherWAN, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code: 850047425041
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number ET-EX19162A Brand Name EtherWAN Manufacturer EtherWAN Systems, Inc Manufacturer Part Number EX19162A Product Model EX19162A Product Name Unmanaged 16-Port Gigabit PoE with 2-Port SFP and 2-Port RJ45 Ethernet Switch Product Type Ethernet Switch Weight 6.60lb
-
Media Type Supported Optical Fiber, Twisted Pair Network Switch Type Unmanaged Power Consumption 23W
-
Expansion Slot Type SFP Number of SFP Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot Yes
-
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 18 Uplink Port Yes
-
Manageable No
-
Network Technology 10/100/1000Base-TX, 1000Base-X
-
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
-
Depth 8.7" Height 1.7" Material Metal Width 17.3"
-
Frequency 50 Hz|60 Hz Input Voltage 120V AC, 230V AC PoE (RJ-45) Port Yes PoE Budget 250W Power Source Power Supply
-
Mount Type Rack Mount
-
Limited Warranty 3-Year
-
Country of Origin TW Package Contents - Unmanaged 16-Port Gigabit PoE Ethernet Switch
- AC Power Cord
- Mounting Brackets
- Screws
- Quick Install Guide
