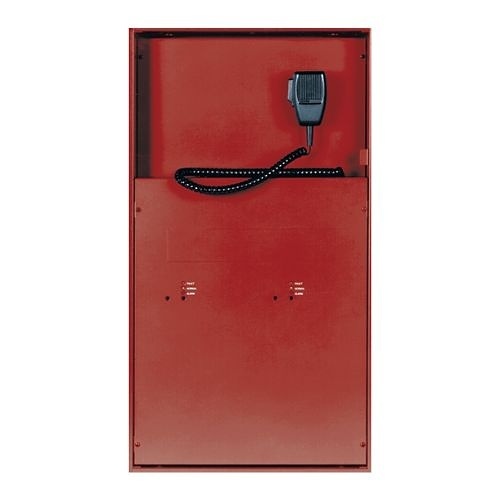

Potter EVAX 200/8Z Voice Evacuation System, 8-Speaker Zones, 200W

EVAX 200/8Z|EV-EVAX2008Z

Potter EVAX 200/8Z Voice Evacuation System, 8-Speaker Zones, 200W

EVAX 200/8Z|EV-EVAX2008Z
Key Features
  • Clean Dead-front construction
  • 8MB MP3 Driver
  • 120VAC Power supply and battery charger
Key Features
  • Clean Dead-front construction
  • 8MB MP3 Driver
  • 120VAC Power supply and battery charger

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Clean Dead-front construction
  • 8MB MP3 Driver
  • 120VAC Power supply and battery charger
Potter Electric Signal, LLC

Potter EVAX 200/8Z Voice Evacuation System, 8-Speaker Zones, 200W

EVAX 200/8Z | EV-EVAX2008Z

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The EVAX-200 / EVAX-150 panels provide 200W and 150W of speaker power respectively. Speaker zones can be configured for general alarm or alarm by zone operation as required. Digital message repeater, microphone, 120VAC power supply and battery charger are all built in. The EVAX Series voice evacuation can be configured for Churches, Restaurants, Movie Theaters, Auditoriums, and High Rise buildings. The paging microphone is an integral component removal of the microphone will cause a "Trouble" condition which will be reporting locally, as well as through the FACP. The EVAX-150 / EVAX-200 is housed in a surface or semi-flush mounted back box with a hinged and key locked door.

Main Features

  • Clean Dead-front construction
  • 8MB MP3 Driver
  • 120VAC Power supply and battery charger
  • Live Microphone Override of message and tone
  • Analog addressable compatible
  • High reliability, no maintenance, fully supervised
  • Easy installation and operation
  • Studio Quality Voice Recordings built in alarm and alert signals

General Information

Name: Potter EVAX 200/8Z Voice Evacuation System, 8-Speaker Zones, 200W
Category: Potter Electric Signal, LLC, Fire, Voice Evacuation Systems
UPC Code: 999999235547
Country of Origin: . Country of origin is subject to change.
