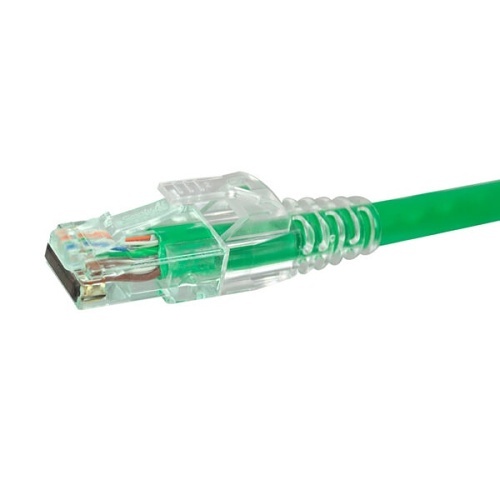

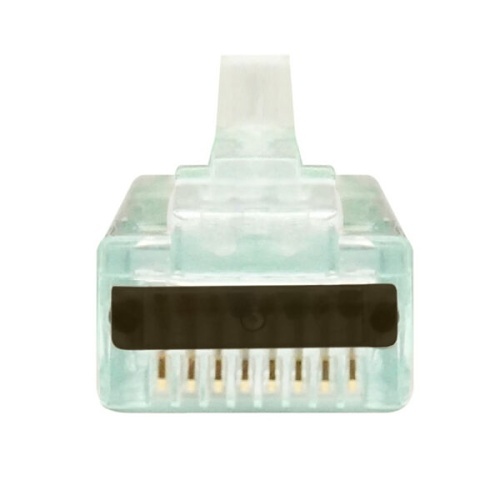

Simply45 S45-1600P CAT6 Unshielded Pass Through RJ45, 100-Pack
S45-1600P|G0-S451600P
Simply45 S45-1600P CAT6 Unshielded Pass Through RJ45, 100-Pack
S45-1600P|G0-S451600P
Key Features
What's Included
- Pass Through with Cap45
- 24AWG Solid , 28-26AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Key Features
What's Included
- Pass Through with Cap45
- 24AWG Solid , 28-26AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Key Features
What's Included
- Pass Through with Cap45
- 24AWG Solid , 28-26AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Please sign in to view pricing and availability and to add to cart.
Accessories
Crimping & Punch Down Tools
ADI # G0-S45C101
MODEL # S45-C101
S45-C101|G0-S45C101
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Our S45-1600 pass-through RJ45 modular plugs incorporate the following features:

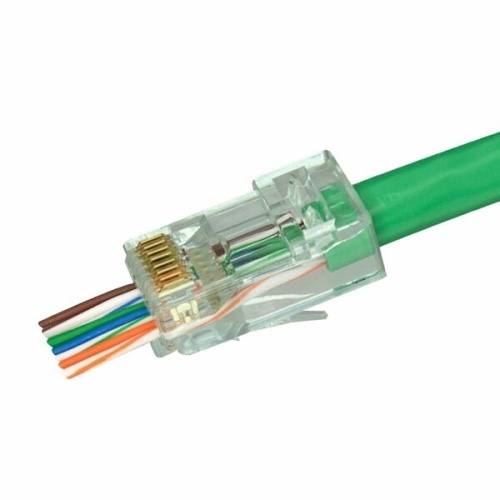

Single Piece Design. The S45-1600 is a single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat6; ISO/IEC 11801 Class E.
Solid and Stranded LAN Cables. The S45-1600 is ideal for most Cat6 UTP (unshielded twisted pair) solid 23 AWG LAN cables with a maximum cable diameter of 7.0mm (0.276”). The S45-1600 also works great with stranded unshielded LAN cables such as used on patch cords/leads. Our part S45-1600 works with most stranded unshielded Cat5e and Cat6 LAN cables, but if your stranded LAN cable has a thicker outer jacket or larger cable OD commonly found on PUR jackets, then our S45-1700 may be the right solution for you.
Main Features
- Pass Through with Cap45
- 24AWG Solid , 28-26AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
- Max Cable OD 6.5mm (0.255″)
- UL94 V0 Commercial (Plenum, LSZH) Rated
- Blue Tint
- 3 Prong Style
- 50µ 24ct Gold
General Information
Name: Simply45 S45-1600P CAT6 Unshielded Pass Through RJ45, 100-Pack
Category: Simply45, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 810093721726
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number G0-S451600P Brand Name Simply45 Manufacturer SIMPLY45 LLC Manufacturer Part Number S45-1600P Packaged Quantity 100 Product Line Simply45 Product Model S45-1600P Product Name PRO Network Connector Product Series ProSeries Product Type Network Connector Weight 6.88oz
-
Cable Type Category 6 Contact Plating Gold, Nickel Shielding No
-
TAA Compliant Yes
-
Connector Type RJ45 Network Male Number of Contacts 8
-
Color Green Package Type Jar
-
Limited Warranty Lifetime
-
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features 3 Prong Contact, 50µ Gold, Color Tinted, Crosstalk Protection, Far End Cross Talk (FEXT), Fire Retardant, HDBaseT, Near End Cross Talk (NEXT), Plenum, PoE, PoE+, PoE++, Polycarbonate, Solid, Stranded Package Contents - PRO Network Connector
- 110 x Cap45
