Genesis 21021109 22/2 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
21021109|WG-21021109
Color: Gray
Cable Length: 1000'

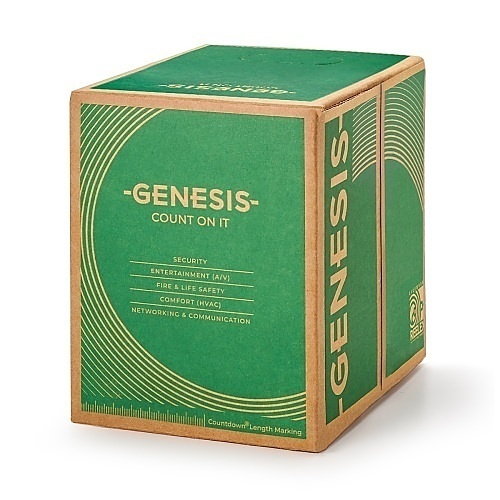

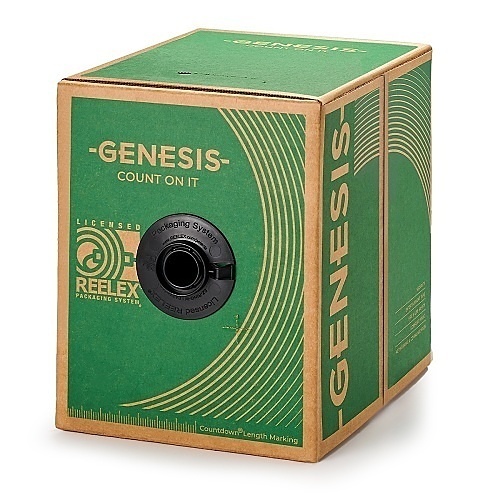

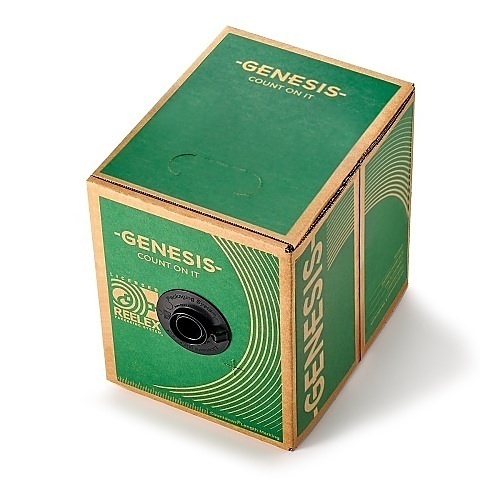

Package Type: Pull Box
Number of Conductors: 2
Solid or Stranded: Stranded
Genesis 21021109 22/2 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
21021109|WG-21021109
Color: Gray
Cable Length: 1000'
Package Type: Pull Box
Number of Conductors: 2
Solid or Stranded: Stranded
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Genesis
Genesis 21021109 22/2 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
21021109 | WG-21021109
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 21021109 22/2 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Unshielded Cables
UPC Code: 619172010009
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-21021109 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 21021109 Packaged Quantity 1 Product Model 21021109 Product Name 21021109 Control Cable Product Type Access & Security Cable
-
American Wire Gauge 22AWG Cable Rating Riser Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Device Supported Burglar Alarm, Intercom, Phone, Speaker Jacket Material PVC Jacket Type FT4, Riser Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
-
TAA Compliant Yes
-
ADI Part Number Replaces WG-11021101 Model Number Replaces 11021101
-
Cable Length 1000' Color Gray Insulation Material PP Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Features Sunlight Resistant Indoor/Outdoor Indoor
