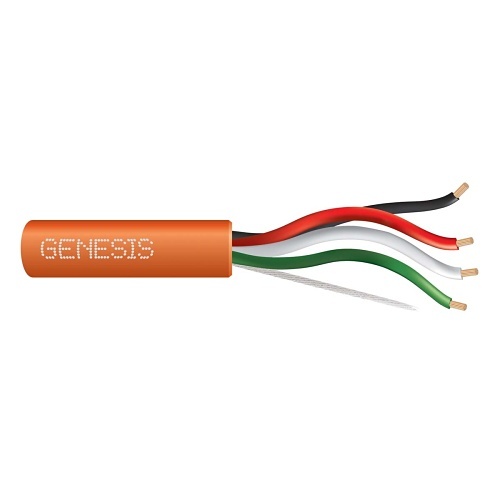

Genesis 31152103 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Orange
31152103|WG-31152103
Color: Orange
Cable Length: 1000'

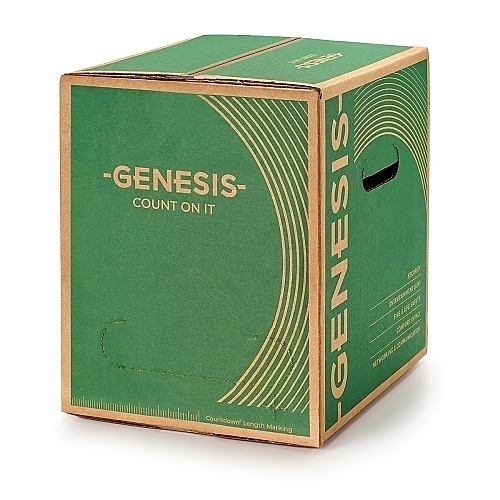

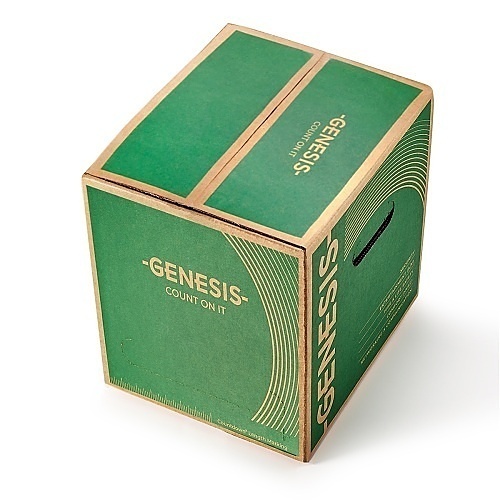

Package Type: Reel-in-a-Box
Solid or Stranded: Stranded
Number of Conductors: 4
American Wire Gauge: 18AWG
Genesis 31152103 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Orange
31152103|WG-31152103
Color: Orange
Cable Length: 1000'
Package Type: Reel-in-a-Box
Solid or Stranded: Stranded
Number of Conductors: 4
American Wire Gauge: 18AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Genesis
Genesis 31152103 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Orange
31152103 | WG-31152103
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 31152103 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Orange
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Unshielded Cables
UPC Code: 781410922778
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-31152103 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 31152103 Packaged Quantity 1 Product Model 31152103 Product Name Control Cable Product Type Access & Security Cable
-
American Wire Gauge 18AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Core/Cladding Diameter 18/4 Device Supported Audio Devices, Low Voltage applications, Security Device Jacket Material LS PVC Jacket Type Riser Number of Conductors 4 Number of Pairs 1 Shielding No Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 1000' Color Orange Insulation Material LS-PVC Material Bare Copper Package Type Reel-in-a-Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
