Genesis
Genesis 32041109 22/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Gray
32041109|WG-32041109
Color: Gray
Cable Length: 1000'
Package Type: Pull Box
Number of Conductors: 4
American Wire Gauge: 22AWG
Genesis
Genesis 32041109 22/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Gray
32041109|WG-32041109
Color: Gray
Cable Length: 1000'
Package Type: Pull Box
Number of Conductors: 4
American Wire Gauge: 22AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Genesis
Genesis 32041109 22/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Gray
32041109 | WG-32041109
Please sign in to view pricing and availability and to add to cart.
Accessories
ADI # 0E-75DW2
MODEL # 0E-75DW2
Sign In for Dealer Pricing
ADI # 0E-RG15050
MODEL # 0E-RG15050
Sign In for Dealer Pricing
ADI # 0E-WTS850N
MODEL # 0E-WTS850N
0E-WTS850N|0E-WTS850N
Sign In for Dealer Pricing
ADI # 0E-WTACB
MODEL # 0E-WTACB
Sign In for Dealer Pricing
ADI # 0E-GR6
MODEL # 0E-GR6
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

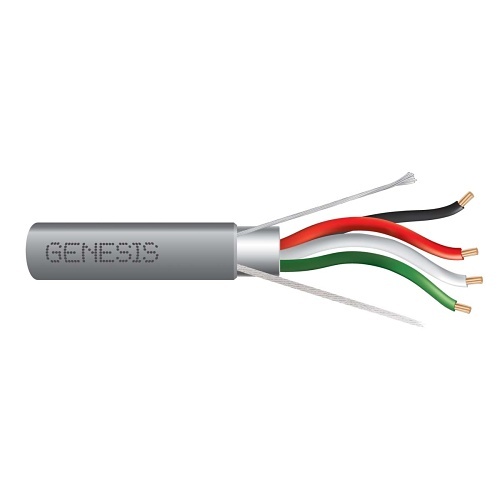

Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 32041109 22/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Shielded Cables
UPC Code: 781410839694
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-32041109 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 32041109 Packaged Quantity 1 Product Model 32041109 Product Name 32041109 Control Cable Product Type Access & Security Cable Weight 17.10 lb
-
American Wire Gauge 22AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 2 Conductor Material Bare Copper Device Supported Burglar Alarm, Intercom, Speaker Jacket Material LS PVC Jacket Type Riser Number of Conductors 4 Number of Pairs 2 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 1000' Color Gray Insulation Material LS-PVC Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
