Genesis 53041108 RG6 BC 75 Ohm Coaxial with Dual-Shield Cable, General Purpose, CATV, 1000' (304.8 m) Pull Box, Black
53041108|WG-53041108
Color: Black
Genesis 53041108 RG6 BC 75 Ohm Coaxial with Dual-Shield Cable, General Purpose, CATV, 1000' (304.8 m) Pull Box, Black
53041108|WG-53041108
Color: Black
Key Features
- Solid Bare Copper center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Dual-shielded (Aluminum Foil + Aluminum Braid)
Key Features
- Solid Bare Copper center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Dual-shielded (Aluminum Foil + Aluminum Braid)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Solid Bare Copper center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Dual-shielded (Aluminum Foil + Aluminum Braid)
Genesis
Genesis 53041108 RG6 BC 75 Ohm Coaxial with Dual-Shield Cable, General Purpose, CATV, 1000' (304.8 m) Pull Box, Black
53041108 | WG-53041108
Please sign in to view pricing and availability and to add to cart.
Accessories
Coaxial Cable Connectors & Splitters
ADI # 0E-BNCCRIMPT
MODEL # 0E-BNCCRIMPT
0E-BNCCRIMPT|0E-BNCCRIMPT
Sign In for Dealer Pricing
Coaxial Cable Connectors & Splitters
ADI # 0E-BNCFF75TP
MODEL # 0E-BNCFF75TP
Sign In for Dealer Pricing
Coaxial Cable Connectors & Splitters
ADI # 0E-BNCT56PTP
MODEL # 0E-BNCT56PTP
0E-BNCT56PTP|0E-BNCT56PTP
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

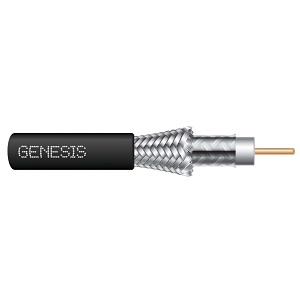

Genesis Broadband CATV Coaxial Cables deliver exceptional signal quality and protect from interference for satellite, cable, and broadcast TV applications.
Main Features
- Solid Bare Copper center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Dual-shielded (Aluminum Foil + Aluminum Braid)
- PVC jacket
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 53041108 RG6 BC 75 Ohm Coaxial with Dual-Shield Cable, General Purpose, CATV, 1000' (304.8 m) Pull Box, Black
Category: Genesis, Wire & Cable, Coaxial Cables
UPC Code: 781410923188
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-53041108 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 53041108 Product Model 53041108 Product Name Coaxial Video Cable Product Type Video Cable
-
American Wire Gauge 18AWG Cable Rating Riser|General Purpose Cable Type Coaxial Conductor Count 1 Device Supported Video Device Impedance 75 ohms Jacket Material PE, PVC Jacket Type CL2 Number of Conductors 1 Shielding Dual Solid or Stranded Solid
-
Cable Length 1000' Color Black Material Aluminum, Polyethylene, PVC Package Type Pull Box
-
Country of Origin CN Indoor/Outdoor Indoor
