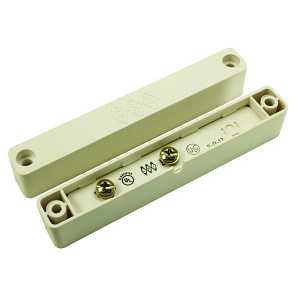

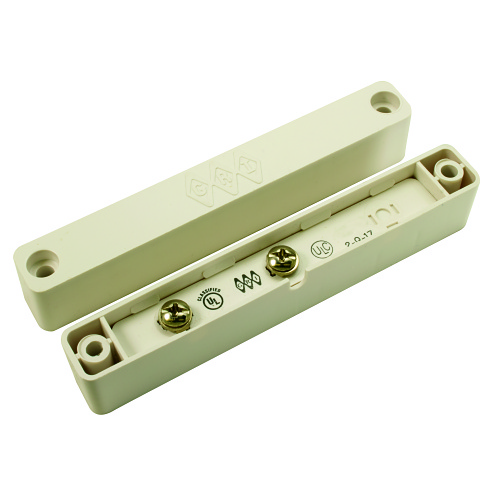

GRI 400 Industrial Surface Mount Switch Set, 1-1/2" Standard Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A, Concealed Screw Terminals, White
GRI 400 Industrial Surface Mount Switch Set, 1-1/2" Standard Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A, Concealed Screw Terminals, White
- Spacers and mounting hardware are included with the set. Switches, magnets and mounting brackets are also available separately
- The GRI 400 series of commercial and industrial switch sets incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations.
- Covers and mounting hardware included
- Spacers and mounting hardware are included with the set. Switches, magnets and mounting brackets are also available separately
- The GRI 400 series of commercial and industrial switch sets incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations.
- Covers and mounting hardware included
Sign In for Dealer Pricing
Become an ADI Customer- Spacers and mounting hardware are included with the set. Switches, magnets and mounting brackets are also available separately
- The GRI 400 series of commercial and industrial switch sets incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations.
- Covers and mounting hardware included
GRI 400 Industrial Surface Mount Switch Set, 1-1/2" Standard Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A, Concealed Screw Terminals, White
400 | GI-400W
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview
The GRI series of commercial and industrial switch sets offer the installer two choices: The 400 incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations. The 410 has the standard terminals located on the side of the switch. Both options give the installer a regular gap of 1 1/2" while the wide gap version is 3", which cover the various types of steel door and frame conditions found at every commercial and industrial site. Spacers and mounting hardware are included with the set. The 410P version offers two feet of vinyl jacketed cable. A mounting bracket kit, PN #82-99-G is also available. The kit includes a S412P-G with M-402, S-200 and 4175 brackets and mounting hardware.
Main Features
- Spacers and mounting hardware are included with the set. Switches, magnets and mounting brackets are also available separately
- The GRI 400 series of commercial and industrial switch sets incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations.
- Covers and mounting hardware included
- Built in E.O.L. Resistors and Diodes upon request
- Colors: white, brown and gray
- Private labeling upon request
- Indicates U.L. 10C Fire Rating
- Lifetime Warranty
- The unit has a regular gap of 1 1/2? which covers the various types of steel door and frame conditions found at every commercial and industrial site.
- Wide gap up to 3"
General Information
Specifications
-
ADI Part Number GI-400W Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 400-W Product Model 400 Product Name 400 Magnetic Contact Product Type Magnetic Contact
-
Connectivity Technology Wired Standard Gap 1.5"
-
Color White Material Steel
-
Power Source DC
-
Contact Type Closed Loop, N.O. Installation Type Hybrid Mount Type Surface Mount
-
Limited Warranty Lifetime
-
Additional Information - Industrial surface mount magnetic contact
- Maximum switching voltage: 160 vdc
- Maximum contact rating: 10 W
- Concealed terminals
- Closed loop
Country of Origin US Package Contents - 400 Magnetic Contact
- Mounting Hardware
- Spacers
