Product Overview

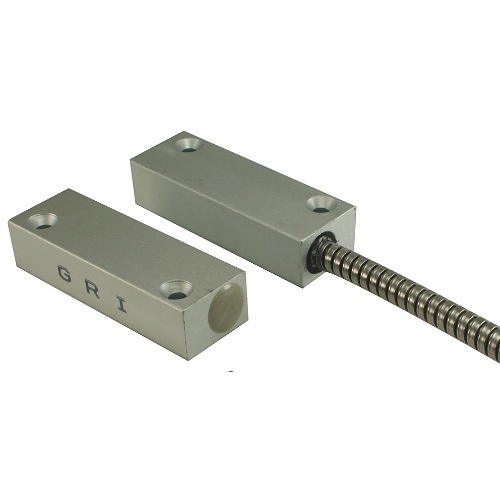

GRI's 4400 Switch Series is a heavy duty surface mounted industrial grade contact. A weather resistant rugged aluminum housing and a variety of optional mounting brackets make it ideal for securing chain link gates, overhead garage doors, safes or walk-in freezer doors. Kits include hardware, brackets and mounting instructions.
INSTALLATION APPLICATIONS:
G.R.I.'s 4400 switch series is a heavy duty surface mounted industrial grade contact. A weather resistant rugged aluminum housing and a variety of optional mounting brackets make it ideal for securing chain link gates, overhead garage doors, safes or walk-in freezer doors.
A standard 3 foot length of stainless steel cable is offered as is a vinyl jacketed CL-2 type cable. Custom cable lengths of either type are available by special request. A case spacer PN #5226 can also be ordered as a separate mounting accessory. Switch sets include all other mounting hardware. A mounting kit PN #8297 is also available for garage door track mounting. The kit includes a 4402-A switch set, brackets and mounting hardware.
General Information
Name : GRI 4400AB-48 Biased for High Security Switch Sets with 48" Armored Lead , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625061341
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-4400AB48
Brand Name : GRI
Connectivity Technology : Wired
Manufacturer : George Risk Industries
Manufacturer Part Number : 4400AB-48
Product Model : 4400AB-48
Product Name : 4400AB-48 Magnetic Contact
Product Series : 4400
Product Type : Magnetic Contact
Technical Information
Contact Configuration : N.O.
Contact Form : Form A
Contact Resistance : 150000 Micro Ohm
Contact Resistance (Ohm) : 0.15
Lead Length : 48"
Lead Length (mm) : 1219.2
Mounting Type : Surface Mount
Power Consumption : 10W
Recommended Use : Door, Gate
Standard Gap : 2.5"
Standard Gap (mm) : 63.5
Termination Style : Wire Leads
Physical Characteristics
Application/Usage : Industrial
Product Material : Aluminum
Power Description
Input Current : 500 mA
Input Current (A) : 0.5
Input Voltage : 200V DC
Input Voltage (V DC) : 200
Power Consumption (W) : 10.000
Product Information
Contact Type : Closed Loop
Installation Type : Commercial
Warranty
Limited Warranty : Lifetime
Miscellaneous
Additional Information : <ul> <li>Switches or magnets are available separately</li> <li>Supervisory loops available</li> <li>Safes & Walk-In Freezer Doors (Note: Can operate within range of 257ºF to -40ºF)</li> <li>Spacer is PN 5226</li> <li>Mounting Hardware Included</li> </ul>
Certifications & Standards : <ul> <li>UL</li> <li>ULC</li> </ul> <p></p>
Features : End of Line (EOL) Resistor, Heavy Duty, Weather resistant
