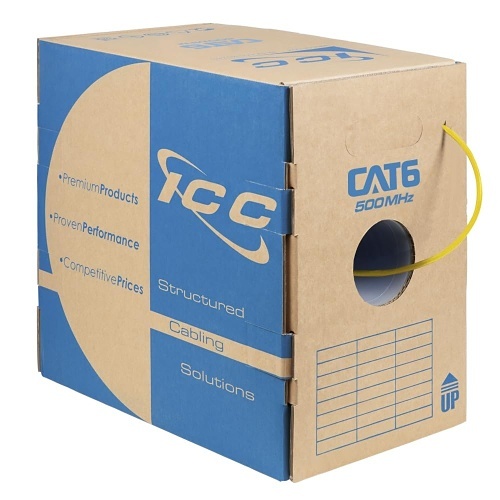

ICC ICCABR6VYL CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, Yellow
ICCABR6VYL|H2-CABR6VYL
ICC ICCABR6VYL CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, Yellow
ICCABR6VYL|H2-CABR6VYL
Key Features
- CAT6 CMR Riser 23AWG Solid Copper
- Supports up to 100W PoE++
- 500 MHz Frequency Support
Key Features
- CAT6 CMR Riser 23AWG Solid Copper
- Supports up to 100W PoE++
- 500 MHz Frequency Support
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- CAT6 CMR Riser 23AWG Solid Copper
- Supports up to 100W PoE++
- 500 MHz Frequency Support
ICC
ICC ICCABR6VYL CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, Yellow
ICCABR6VYL | H2-CABR6VYL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
CAT6 CABLE: ICC's CAT6 UTP unshielded riser cable provides dependable transmission performance, accommodating 1Gb (Gigabit) Ethernet with a 500MHz bandwidth. This cable not only meets but surpasses TIA Alien Crosstalk requirements, holding ETL Verification to the TIA 568.2-D standard for dependable support of high-speed Ethernet applications. With its riser-rated design and an outer diameter of 0.213 inches, it adheres to safety regulations for vertical installations, making it an ideal choice for a variety of settings, including offices and schools. This cable aligns with the TIA-568-C.2 standard, guaranteeing reliable network connectivity while simplifying installation in riser spaces.
Main Features
- CAT6 CMR Riser 23AWG Solid Copper
- Supports up to 100W PoE++
- 500 MHz Frequency Support
- UL and ETL Certified
- Tangle-Free REELEX Pull Box
- NEC and TAA Compliant
- Indoor Use with CMR Riser PVC Jacket
- Sequential Footage Markings
- Compatible with Fast and Gigabit Ethernet
General Information
Name: ICC ICCABR6VYL CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, Yellow
Category: ICC, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 633758038607
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number H2-CABR6VYL Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABR6VYL Product Name Cat.6 UTP Network Cable Product Type Network Cable
-
American Wire Gauge 23AWG Cable Rating Riser Cable Type Category 6 Conductor Count 4 Device Supported Network Device Jacket Material PVC Jacket Type Riser Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
-
Connector Type RJ-45
-
Data Transfer Rate 1 Gbit/s
-
Cable Length 1000' Color Yellow Insulation Material FEP Material PVC Package Type Pull Box
-
Limited Warranty 3-Year
-
Certifications & Standards ETL, RoHS, TIA, UL Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features Attenuation to Crosstalk Ratio (ACR), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT)
