ICC ICFOJ2G702 OM3 Multimode LC to SC 50/125µm Fiber Patch Cable, Data Center Grade 0.1dB Typical Insertion Loss, ONFR Riser Jacket, 2m (7'), 1-Pack, Aqua

ICFOJ2G702

|

H2-FOJ2G702

Sign In for Dealer Pricing

New to ADI?Become a Customer
Data Sheet

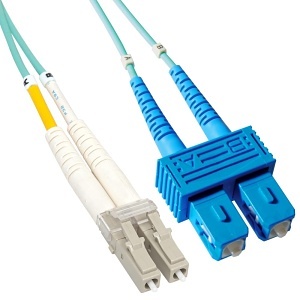

Image of H2-FOJ2G702
Shop all ICC

ICC ICFOJ2G702 OM3 Multimode LC to SC 50/125µm Fiber Patch Cable, Data Center Grade 0.1dB Typical Insertion Loss, ONFR Riser Jacket, 2m (7'), 1-Pack, Aqua

ICFOJ2G702 | H2-FOJ2G702

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

ICC offers a 50 micron LC-SC patch cable constructed with Corning Clearcurve OM3 glass in AB to BA polarity to support laser optimized multimode fiber LOMMF and high speed 10G cabling networks. The LC to SC fiber optical cord is OM3 50/125 Duplex Fiber Cable. The aqua jacket material around the OM3 50/125 multimode fiber optic cable is a polyolefin flame retardant compound for OFNR safety rating. It is colored aqua to signify the fiber optic jumper cable is suitable for 10Gb networking. The LC patch cord is assembled with LC connectors for a high density data center environment. Each assembly is 100% factory tested to meet Bellcore GR-326 and TIA/EIA standard with a maximum insertion loss at 0.2dB. The data center grade duplex multimode lc connector meets EIA/TIA 604-2 standards with ceramic ferrule. The ferrule on the end of the multimode fiber cable is pre-polished for a consequently consistent performance. Operating temperature for this OM3 fiber is -20C to +70C and minimum bend radius is 1.18in. ICC LC patch cable is RoHS compliant and complies with industry standards. Each fiber optic patch cord is factory built and tested.

Main Features

  • Supports 10G High-Speed Networks: ICC LC-SC patch cord provides optimal performance for 10 Gigabit Ethernet, Fibre Channel, and SAN applications in data centers. Compatible with VCSEL laser network equipment such as SFP+ transceivers and optical fiber NICs for high-density environments
  • Premium Construction For Durability: Features a 2.0 x 4.2mm duplex Zipcord with slim-profile boots for strain relief, pre-polished ceramic ferrules for consistent performance, and bend-insensitive design with a 7.5mm radius for enhanced flexibility and reduced signal loss
  • Complies with Industry Standards: This fiber optic cable meets TIA/EIA 604-2 and Bellcore GR-326 standards, with typical Insertion Loss of 0.1dB. It also supports IEEE 802.3, IEC-60793-1-10, and OM3 standards for reliable, high-speed data transmission
  • Aqua Jacket For Easy Identification: The polyolefin flame retardant aqua jacket ensures safety with an OFNR rating while making it easy to distinguish as OM3 50/125 fiber for 10Gb networking in your installations
  • Rigorously Factory Tested: Each assembly undergoes 100% factory testing for quality assurance, providing reliable, low-loss performance in demanding environments. Operating temperature range: -20°C to +70°C with a minimum bend radius of 0.79 inches for versatility

General Information

Name: ICC ICFOJ2G702 OM3 Multimode LC to SC 50/125µm Fiber Patch Cable, Data Center Grade 0.1dB Typical Insertion Loss, ONFR Riser Jacket, 2m (7'), 1-Pack, Aqua
Category: ICC, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Patch Cords
UPC Code: 633758026161
Country of Origin: China. Country of origin is subject to change.
