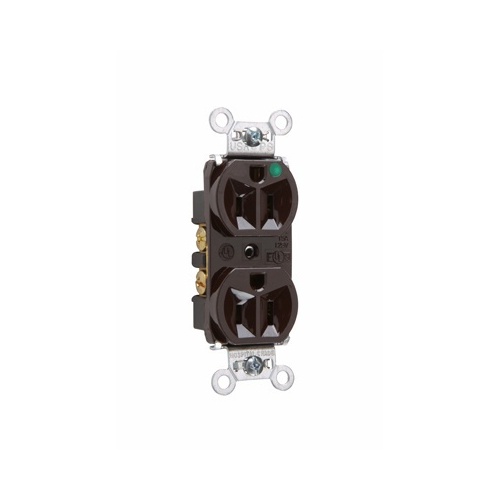

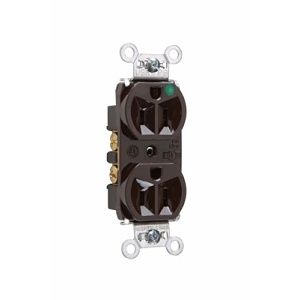

Image of H4-8200H
Shop all On-Q by Legrand

On-Q 8200-H Compact HG Duplex Power Outlet, 15A 125V, Brown

8200-H|H4-8200H
Shop all On-Q by Legrand

On-Q 8200-H Compact HG Duplex Power Outlet, 15A 125V, Brown

8200-H|H4-8200H
Key Features
  • Impact-resistant nylon face
  • One-piece heat-treated triple-wipe brass power contacts
  • Easily accessible break-off line contact connecting tab for split circuit wiring
Key Features
  • Impact-resistant nylon face
  • One-piece heat-treated triple-wipe brass power contacts
  • Easily accessible break-off line contact connecting tab for split circuit wiring

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Impact-resistant nylon face
  • One-piece heat-treated triple-wipe brass power contacts
  • Easily accessible break-off line contact connecting tab for split circuit wiring
On-Q by Legrand

On-Q 8200-H Compact HG Duplex Power Outlet, 15A 125V, Brown

8200-H | H4-8200H

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Discover the On-Q 8200-H Compact High Grade Duplex Receptacle, designed for durability and ease of installation. It features an impact-resistant nylon face and a corrosion-resistant, zinc-plated steel strap securely locked in place. The one-piece heat-treated triple-wipe brass power contacts ensure reliable connectivity, while the compact design makes installation straightforward. Equipped with an auto-ground clip for secure grounding and tri-drive screws for mounting, it supports #14 to #10 AWG copper or copper-clad conductors. Rated for a maximum 30°C temperature rise and operates reliably between -40°C and 60°C. Upgrade your electrical setup with this robust, high-performance receptacle today!

Main Features

  • Impact-resistant nylon face
  • One-piece heat-treated triple-wipe brass power contacts
  • Easily accessible break-off line contact connecting tab for split circuit wiring
  • Corrosion-resistant, zinc-plated steel strap is locked in
  • Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors
  • High strength thermoplastic back body
  • Auto-ground clip assures positive ground
  • Compact design for easy installation
  • Tri-drive terminal and mounting screws
  • Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact

General Information

Name: On-Q 8200-H Compact HG Duplex Power Outlet, 15A 125V, Brown
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007820010
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
