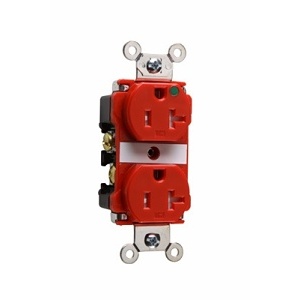

Pass & Seymour TR63-HRED TAer Resistant Hospital Receptacle, 20A, 125V, Red
TR63-HRED
|H4-TR63HRED
Shop all Pass & Seymour by Legrand
Pass & Seymour TR63-HRED TAer Resistant Hospital Receptacle, 20A, 125V, Red
TR63-HRED | H4-TR63HRED
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR63-HRED is a tamper-resistant hospital-grade 20A receptacle built for safety and durability. It features a thermoplastic dual shutter system to block foreign objects and comes in both 15 and 20 Amp options at 125V. Crafted with an extra heavy-duty one-piece brass mounting strap and a nickel-plated triple-wipe power contact, this device ensures dependable conductivity and longevity. Its impact-resistant nylon face and back, along with secure strap tabs and drive screws, guarantee structural integrity. Installation is simplified by a patented external screw-pressure-plate back wire clamp and #10 brass screws, providing clear connection assurance. Designed to withstand extreme temperatures and heavy usage, this receptacle maintains performance even under 150% overload conditions. Upgrade your electrical setup with this reliable, safety-focused solution today.
Main Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- AC receptacles available in 15 and 20 Amp, 125V
- Extra heavy-duty brass, one-piece mounting strap with integral ground
- One-piece, nickel-plated; brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Impact-resistant nylon face and back body
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR63-HRED TAer Resistant Hospital Receptacle, 20A, 125V, Red
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007145267
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR63HRED Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR63-HRED Product Name 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Red Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Red Depth 0.9" Height 2.75" Width 1.63"
Current Rating 20A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX
