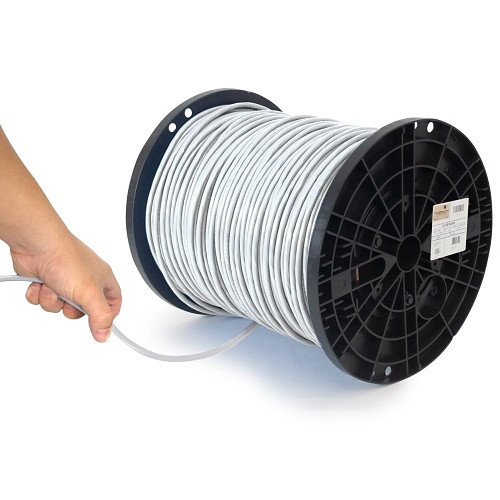

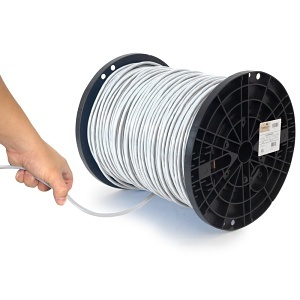

ICC ICCABP6AWH CAT6A CMP Plenum 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 650 MHz, UL Certified, ETL Verified, 1000' Reel, White
ICCABP6AWH|H2-CABP6AWH
Color: White
Shielding: No
Jacket Type: Plenum
ICC ICCABP6AWH CAT6A CMP Plenum 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 650 MHz, UL Certified, ETL Verified, 1000' Reel, White
ICCABP6AWH|H2-CABP6AWH
Color: White
Shielding: No
Jacket Type: Plenum
Key Features
- CAT6A CMP Plenum-rated for indoor use
- 100% Solid pure copper conductors
- Supports up to 100W PoE++
Key Features
- CAT6A CMP Plenum-rated for indoor use
- 100% Solid pure copper conductors
- Supports up to 100W PoE++
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- CAT6A CMP Plenum-rated for indoor use
- 100% Solid pure copper conductors
- Supports up to 100W PoE++
ICC
ICC ICCABP6AWH CAT6A CMP Plenum 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 650 MHz, UL Certified, ETL Verified, 1000' Reel, White
ICCABP6AWH | H2-CABP6AWH
Please sign in to view pricing and availability and to add to cart.
Accessories
Overview
Specifications
Documents
Product Overview
CAT6A CABLE: ICC's CAT6A 10Gig UTP unshielded plenum cable delivers exceptional transmission performance, exceeding 650MHz. It not only meets but exceeds TIA Alien Crosstalk requirements and holds ETL Verification to the TIA 568.2-D standard for seamless support of 10Gig Ethernet applications (10GBASE-T). The cable is intelligently designed with a spline to separate neighboring twisted pairs, effectively minimizing Alien Crosstalk. With an outer diameter of 7.6mm and conductor insulation diameter of 1.18mm, this plenum-rated cable guarantees reliability and durability. It is an ideal choice for high-bandwidth applications such as data centers and other data-intensive or backbone requirements, especially in plenum spaces where fire safety is paramount. Conveniently packaged on a reel, it's ready for easy deployment in various installation scenarios.
Main Features
- CAT6A CMP Plenum-rated for indoor use
- 100% Solid pure copper conductors
- Supports up to 100W PoE++
- 650 MHz Frequency support
- UL Certified and ETL Verified
- TAA Compliant and Section 889 Certified
- Supports 10 Gigabit Ethernet
- Sequential footage markings for easy tracking
- Rated for 75°C and 300V
- RoHS compliant and IEEE 802.3 standards
General Information
Name: ICC ICCABP6AWH CAT6A CMP Plenum 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 650 MHz, UL Certified, ETL Verified, 1000' Reel, White
Category: ICC, Wire & Cable, Network Cables, Category 6A Network Cables
UPC Code: 633758035118
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number H2-CABP6AWH Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABP6AWH Product Name 650MHz CAT6A Bulk Cable with 23 AWG UTP Solid Wires, CMP Jacket, 1000 Feet Product Type Network Cable Weight 45 lb
-
American Wire Gauge 23AWG Cable Rating Plenum Cable Type Category 6a Conductor Count 4 Device Supported Network Device Jacket Material LS FR-PVC Jacket Type Plenum Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
-
Connector Type RJ-45
-
Data Transfer Rate 10 Gbit/s
-
Cable Length 1000' Color White Insulation Material FEP Material LS FR-PVC Package Type Bulk
-
Limited Warranty Lifetime
-
Certifications & Standards ETL, RoHS, TIA, UL Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Alien Cross Talk (AXT), Attenuation to Crosstalk Ratio (ACR), Bendable, Consumer Electronics Control (CEC), Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Alien Near End Crosstalk (PSANEXT), Power-sum Attenuation To Alien Crosstalk Ratio Far End (PSAACRF), Power-sum Near End Crosstalk (PSNEXT)
