Great Lakes GL790L-2448MSS L Cabinet, 42U, 24X48", Black
GL790L-2448MSS|JX-GL2448MSS
Great Lakes GL790L-2448MSS L Cabinet, 42U, 24X48", Black
GL790L-2448MSS|JX-GL2448MSS
Key Features
- 3/8" sq. (M6) mounting rails adjustable in 6.35 mm increments
- Depth markings along horizontals for easy rail adjustment
- Includes 1 vertical PDU/cable management rail mounted in the rear corner
Key Features
- 3/8" sq. (M6) mounting rails adjustable in 6.35 mm increments
- Depth markings along horizontals for easy rail adjustment
- Includes 1 vertical PDU/cable management rail mounted in the rear corner
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 3/8" sq. (M6) mounting rails adjustable in 6.35 mm increments
- Depth markings along horizontals for easy rail adjustment
- Includes 1 vertical PDU/cable management rail mounted in the rear corner
Great Lakes Data Racks & Cabinets
Great Lakes GL790L-2448MSS L Cabinet, 42U, 24X48", Black
GL790L-2448MSS | JX-GL2448MSS
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Great Lakes GL790L-2448MSS L Cabinet is a 42U, 24X48" black data rack designed for efficient equipment management. It features adjustable 3/8" square mounting rails set in 6.35 mm increments, with depth markings for precise setup. The cabinet includes a rear-mounted vertical PDU/cable management rail with obrounds for cinch straps, cable routing cutouts, and PDU button mounting. Its fully open bottom allows for large under-floor cables, while mesh front and split mesh rear doors enhance airflow. Half-height solid side panels with locks, plus pre-installed levelers and casters, complete this versatile unit. Upgrade your data center organization and reliability today with this robust cabinet.
Main Features
- 3/8" sq. (M6) mounting rails adjustable in 6.35 mm increments
- Depth markings along horizontals for easy rail adjustment
- Includes 1 vertical PDU/cable management rail mounted in the rear corner

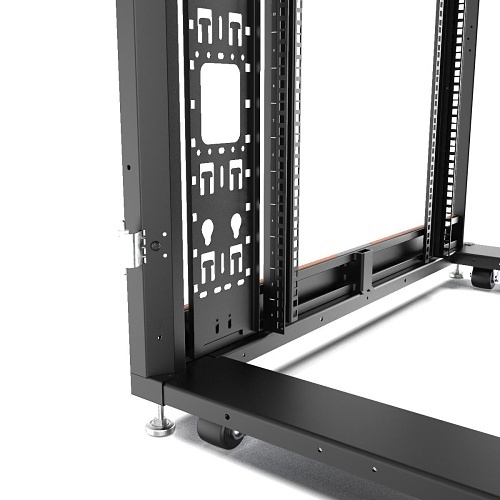

- PDU/cable management rail features obrounds for cinch straps and cutouts for cable routing, also provides button mounting of PDUs
- Fully open bottom to accommodate large under floor cable applications

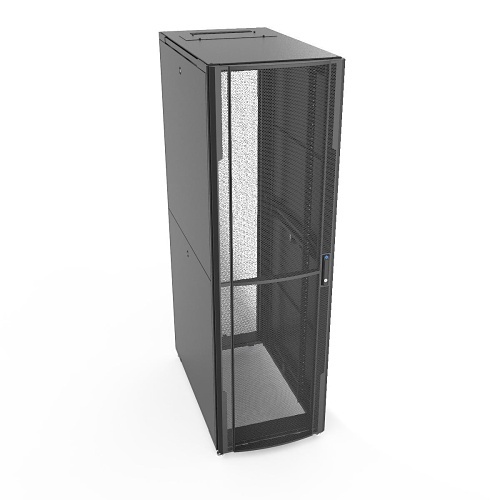

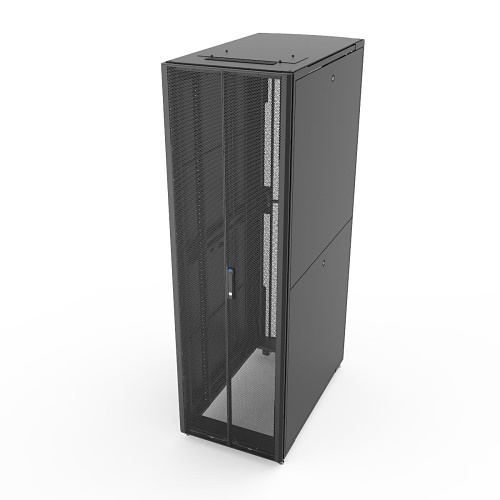

- Mesh front door and split mesh rear door provide airflow
- Half-height solid side panels with lock
- Levelers and casters are pre-installed
General Information
Name: Great Lakes GL790L-2448MSS L Cabinet, 42U, 24X48", Black
Category: Great Lakes Data Racks & Cabinets, Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number JX-GL2448MSS Brand Name Great Lakes Data Racks & Cabinets Manufacturer Part Number GL790L-2448MSS Product Name L Cabinet Product Type Cabinet
-
Maximum Load Capacity 3000 lb
-
Color Black Depth 50.86" Height 78.5" Width 23.62"
-
Environmental Certification RoHS II, UL2416
