Kanex MMX-8X8CAT-150M 8X8 CAT6 Switcher with HDMI and Twisted Pair Input / Output Device, 4K at 60Hz
MMX-8X8CAT-150M|KP-MMX8X8CAT
Kanex MMX-8X8CAT-150M 8X8 CAT6 Switcher with HDMI and Twisted Pair Input / Output Device, 4K at 60Hz
MMX-8X8CAT-150M|KP-MMX8X8CAT
Key Features
What's Included
- HDMI 2.0b, HDCP 2.2, and HDCP 1.x Compliant
- Video resolution up to DCI/UHD 4K60 (YUV 4:4:4) on all HDMI and HDBaseT ports
- 8 HDMI inputs and 8 HDMI / HDBaseT mirrored outputs
Key Features
What's Included
- HDMI 2.0b, HDCP 2.2, and HDCP 1.x Compliant
- Video resolution up to DCI/UHD 4K60 (YUV 4:4:4) on all HDMI and HDBaseT ports
- 8 HDMI inputs and 8 HDMI / HDBaseT mirrored outputs
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- HDMI 2.0b, HDCP 2.2, and HDCP 1.x Compliant
- Video resolution up to DCI/UHD 4K60 (YUV 4:4:4) on all HDMI and HDBaseT ports
- 8 HDMI inputs and 8 HDMI / HDBaseT mirrored outputs
Kanex
Kanex MMX-8X8CAT-150M 8X8 CAT6 Switcher with HDMI and Twisted Pair Input / Output Device, 4K at 60Hz
MMX-8X8CAT-150M | KP-MMX8X8CAT
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

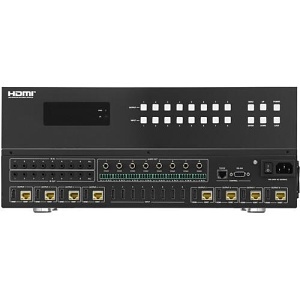

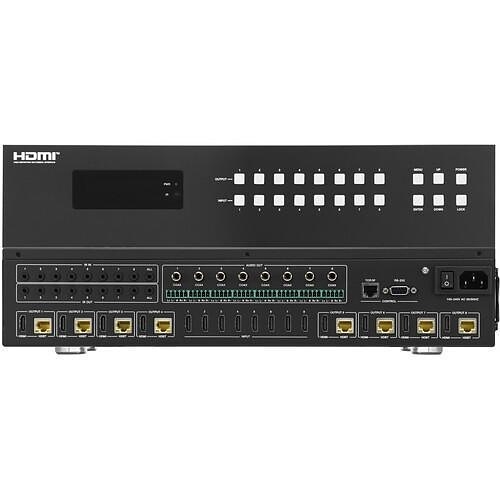

The 8x8 4K HDMI 2.0 4K60 Matrix with Audio De-Embedding Kit from KanexPro includes a professional eight-input, eight-output HDMI matrix with eight receiver units, which is suitable for digital signage, education, broadcast, home theater, and conference room audio-visual environments. The 8x8 matrix features a 2 RU rackmount chassis that can transmit both power via PoC and video over HDBaseT to the eight included receiver units. The receivers can be set up to 394' away when transmitting up to 4K60 video and up to 492' away when transmitting 1080p video. Other features include HDMI 2.0 standards, HDCP 2.2/1.x, EDID management, bidirectional IR matrix, analog audio de-embedding, HDR/Dolby Vision/HLG support, and 18 Gb/s uncompressed, lossless transmission bandwidth. The matrix can be fully controlled via RS-232, IR, and a Web-based GUI, using Ethernet, where end-users can switch, control, and manage the matrix using graphical and visual indicators right from a computer or touch panel.
Main Features
- HDMI 2.0b, HDCP 2.2, and HDCP 1.x Compliant
- Video resolution up to DCI/UHD 4K60 (YUV 4:4:4) on all HDMI and HDBaseT ports
- 8 HDMI inputs and 8 HDMI / HDBaseT mirrored outputs
- HDMI ports transmit 18 Gb/s lossless uncompressed video bandwidth
- Support 18 Gb/s lossless compressed HDBaseT signal transmission
- Support for 4K to 1080p downscaling for each output port
- HDR, HDR10, HDR10+, Dolby Vision, and HLG are supported
- Supports IR matrix
- Audio de-embedding is supported via the 8 analog coax ports
- Advanced EDID management and CEC control are supported
General Information
Name: Kanex MMX-8X8CAT-150M 8X8 CAT6 Switcher with HDMI and Twisted Pair Input / Output Device, 4K at 60Hz
Category: Kanex, Residential AV, Residential Video Signal Distribution, HDMI Matrix Switches
UPC Code: 813982023642
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number KP-MMX8X8CAT Brand Name Kanex Manufacturer Part Number MMX-8X8CAT-150M Product Name KanexPro 8x8 4K HDMI 2.0 4K60 Matrix with Audio De-Embedding Kit (492') Product Type Matrix With Audio De- Embedding Kit Weight 14.42lb
-
Input Voltage 100-240V AC
-
Limited Warranty 3-Year
-
Environmental Certification CE, FCC, UL Environmentally Friendly Yes Package Contents 18 x Mounting Ear, 8 x 3-Pin Terminal Connector, 8 x 5-Pin Terminal Connector, 8 x HDBaseT Receiver, 9 x IR Blaster Cable (4.9'), 9 x IR Receiver Cable (4.9'), KanexPro 8x8 4K HDMI 2.0 4K60 Matrix with Audio De-Embedding Kit (492'), Matrix IR Remote, Power Cable, RS-232 Male-to-Female Serial Cable (4.9')
