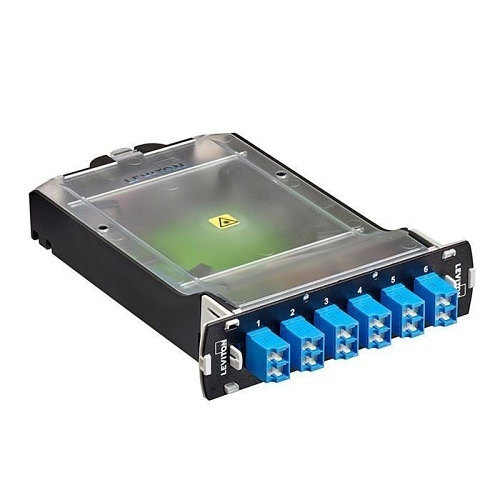

Leviton SPLCS-2LL SDX Pigtail Fusion Splice Module Pre-Loaded with Duplex Shuttered LC Adapters (Blue) and 12-Fiber OS2 LC/PC Individual Pigtails

SPLCS-2LL | LV-SPLCS2LL

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

OPT-X SDX LC, SC, and MPO Splice Modules protect and organize heat-shrink fusion spliced fibers (up to 12, 24, or 72 fibers) for installation in an SDX fiber enclosure or panel. The modular design enables faster field splicing and simple management of pigtails within the housing. Splice modules eliminate the need for individual splice trays within a fiber enclosure and provide optimal organization and slack management of fibers. Typical applications include Wide Area Networks (WAN), campuses, high-count riser buildings, government installations, data centers, and central offices.

Main Features

Modules integrate fiber adapter bulkhead (12 or 24 fibers) and splice holders,eliminating need of splice trays
Integrated latching tabs allow for one-handed insertion and removal from SDX enclosures and panels
Offered in singlemode (OS2) UPC,APC,and laseroptimized multimode (OM3 and OM4) fiber types in LC,SC,or MPO connectivity
No proprietary tool or fixture required for fusion splicing
12-fiber color-coded 900 µm pigtail assembly allows for easy identification when fusion splicing
Patented internal shutters on LC adapters eliminate the need for dust plugs to reduce waste,speed up deployment,and ensure safer installations
Modular design allows for easy maintenance of individual spliced fiber and scaling up without impacting adjacent fibers
Accessory kit includes heat-shrink splice sleeves,braided mesh sleeve,build-up tape and tie wraps
Patented MPO pigtail assembly allows for easy routing within module and no-preparation mass fusion splicing

General Information

Name: Leviton SPLCS-2LL SDX Pigtail Fusion Splice Module Pre-Loaded with Duplex Shuttered LC Adapters (Blue) and 12-Fiber OS2 LC/PC Individual Pigtails

Category: Leviton, Data Comm & Networking, Patch Panels, Fiber Optic Patch Panels

UPC Code: 078477004760

Country of Origin: China. Country of origin is subject to change.

Specifications

: ADI Part Number LV-SPLCS2LL Brand Name Leviton Manufacturer Part Number SPLCS-2LL

: Material Polycarbonate, Steel

: Color Blue

: Country of Origin CN
