Middle Atlantic UPX-2000R-2 NEXSYS Series 20A UPS Battery Backup Power System with Bank Outlet Control, 2000VA, 2U
UPX-2000R-2
|NO-UPX2000R2
Shop all Middle Atlantic by Legrand
Middle Atlantic UPX-2000R-2 NEXSYS Series 20A UPS Battery Backup Power System with Bank Outlet Control, 2000VA, 2U
UPX-2000R-2 | NO-UPX2000R2
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
NEXSYS is built on a promise that we’ve kept for over two decades – more than half the life of the company – that our power products are designed, engineered, and built for AV. It’s one thing to say it, it’s another thing to prove it. And our NEXSYS Line Interactive UPS backups prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you’d expect. 2000VA and 20 amp battery backup. 8 Outlet UPS backup with Bank Control, (2) outlet banks with 4 outlets each. An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the “4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rack rails. The battery is already connected so just plug it in. Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don’t like our default settings - we won’t be offended. Set reminders or notifications for things like battery replacement, etc. Via email or on the UPS. The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6’ (1.8m) IEC power cord. Name, address, and date of birth, please? Easily locate the IP, MAC address, and device name via the front LCD screen. You can even see the battery installation date. Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment. Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn’t up to your standards. Swap it like it’s hot. Hot-swappable battery from the front access panel for easy service without disrupting the system. RackLink Remote Management Built-In. Included RS232 port for control, (2) dry contact ports for alerts, 1 contact is defined to alert users of a battery switchover when the UPS loses utility power or hits a set threshold, 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds. Energy Star Certified.
Main Features
- 8 outlets-Bank Controlled option with (2) 4 outlet banks-Individually Controlled options for all 8 outlets via RackLink
- All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
- Everything is assembled and connected right from the factory saving you time during your installations-Rack ears are pre-installed with the"4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail-The battery is already connected so just plug it in
- The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications
- The NEXSYS UPSs are RackLink compatible for remote monitoring and management and some are compatible right out of the box! Look for RLNK in the part number. Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect directly to the UPS
- Set reminders or notifications for things like battery replacement, etc. Via email or on the UPS

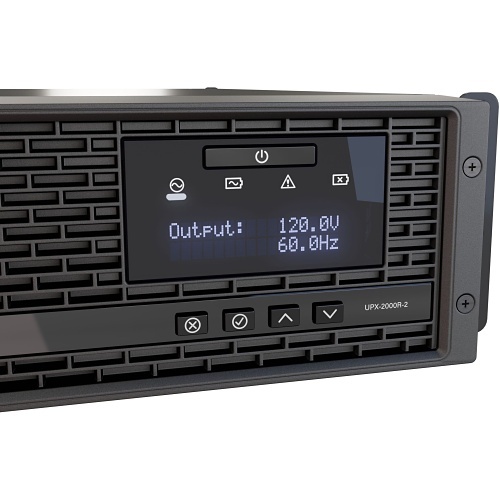

- Front panel LCD screen shows UPS Device Name, Model Number, Serial Number, Replacement Battery Number, Battery Install Date, Firmware Version and where applicable, RackLink Network card IP address and MAC address
- Hot swappable battery from the front access panel for easy service with out disrupting the system
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required-All UPSs include a 6' (1.8m) IEC power cord
- Energy Star Certified
General Information
Name: Middle Atlantic UPX-2000R-2 NEXSYS Series 20A UPS Battery Backup Power System with Bank Outlet Control, 2000VA, 2U
Category: Middle Atlantic by Legrand, Batteries & Power Supplies, Power Management, UPS
UPC Code: 656747395598
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number NO-UPX2000R2 Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number UPX-2000R-2 Product Line NEXSYS Product Model UPX-2000R-2 Product Name NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS Product Series UPX Product Type Line-interactive UPS Sector Professional AV Surge Protection Yes
Application/Usage Bank, Desktop AVR Yes Backup/Run Time (Full Load) 3-Minute Backup/Run Time (Half Load) 10-Minute Battery Size 12V Hot Swappable Yes Number of Batteries 4 Number of Outlets 8 Output Voltage 110V AC, 120V AC, 127V AC Overload Protection Yes Receptacle Detail 8 x NEMA 5-20R Receptacle Type NEMA 5-20R Transfer Time 10-Millisecond
Battery Capacity 9Ah Battery Characteristics Maintenance-free, Sealed Battery Chemistry Lead Acid Battery Recharge Time 8-Hour Battery Voltage 12V DC System Voltage 48
Energy Star Yes TAA Compliant No
Status Indicators Yes
Maximum Operating Temperature 104°F (40°C) Operating Humidity 0-95% Operating Temperature (T-T) 32-104°F Sound Emission 50 dB
EPO Port Yes Serial Port Yes
Alarm Battery Disconnected, Fault, Low Battery, On Battery, Overload Network Management SNMP, SNMPv3, SSH, Telnet
Color Black Depth 22 Form Factor Rack Mount Height 3.46 Width 19
Input Frequency 60Hz Input Voltage 120V AC Output Frequency 60Hz Plug/Connector Type NEMA 5-20P Surge Energy Rating 1000 J Voltage Rating 120V AC, 48V DC Waveform Type Pure Sine Wave
Mount Type Rack Mount
Additional Warranty Information 2 Years Battery Limited Warranty 2-Year, 3-Year
Certifications CSA, FCC, REACH, ROHS, TUV Country of Origin CN Environmental Certification ENERGY STAR 2.0, REACH, RoHS 3 Environmentally Friendly Yes Features NEXSYS UPS Package Contents - NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS
- 6' (1.8m) IEC Power Cord
