Lantronix M/GE-T-LX-01-OZ Mini 1000BASET to 1000BASESX, SC Singlemode, 3.3V, 10km
M/GE-T-LX-01|P6-MGETLX1OZ
Lantronix M/GE-T-LX-01-OZ Mini 1000BASET to 1000BASESX, SC Singlemode, 3.3V, 10km
M/GE-T-LX-01|P6-MGETLX1OZ
Key Features
What's Included
- Auto-Negotiation
- Auto-MDI/MDIX
- Automatic Link Restoration
Key Features
What's Included
- Auto-Negotiation
- Auto-MDI/MDIX
- Automatic Link Restoration
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Auto-Negotiation
- Auto-MDI/MDIX
- Automatic Link Restoration
Lantronix
Lantronix M/GE-T-LX-01-OZ Mini 1000BASET to 1000BASESX, SC Singlemode, 3.3V, 10km
M/GE-T-LX-01 | P6-MGETLX1OZ
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

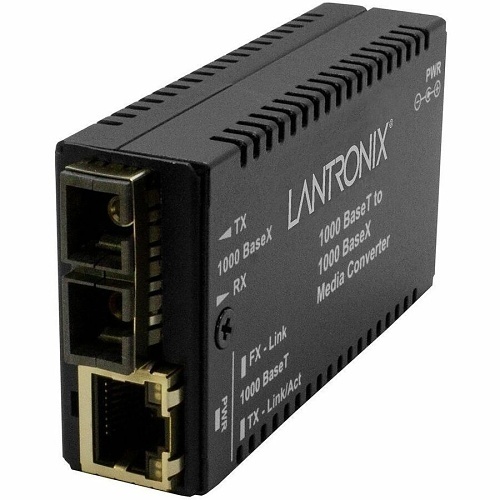

Mini Gigabit Ethernet Media Converter
1000Base-T to 1000Base-SX/LX
The M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Features
- Auto-Negotiation
- Auto-MDI/MDIX
- Automatic Link Restoration
- Interoperable with other 1000Base-T/SX/LX NICs or switch ports
- Status LEDs for easy monitoring
- Supports SFP modules
- Supports Jumbo Frames up to 13312bytes
- 65% smaller than standard media converter
- Extend Network Distance
- Low-Latency Design
General Information
Name: Lantronix M/GE-T-LX-01-OZ Mini 1000BASET to 1000BASESX, SC Singlemode, 3.3V, 10km
Category: Lantronix, Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, Media Converters, Media Converters
UPC Code: 648177049011
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P6-MGETLX1OZ Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number MGETLX01OZ Product Model M/GE-T-LX-01 Product Name M/GE-T-LX-01 Transceiver/Media Converter Product Series M/GE-T Product Type Transceiver/Media Converter Weight 2 lb
-
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 2.60W
-
TAA Compliant Yes
-
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
-
Network Technology 1000Base-LX, 1000Base-T
-
Ethernet Technology Gigabit Ethernet
-
Depth 3.3" Height 0.9" Width 1.8"
-
Input Voltage 12V DC Power Source AC, DC
-
Limited Warranty Lifetime
-
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents M/GE-T-LX-01 Transceiver/Media ConverterPower Supply - Australia
