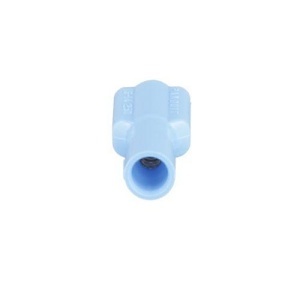

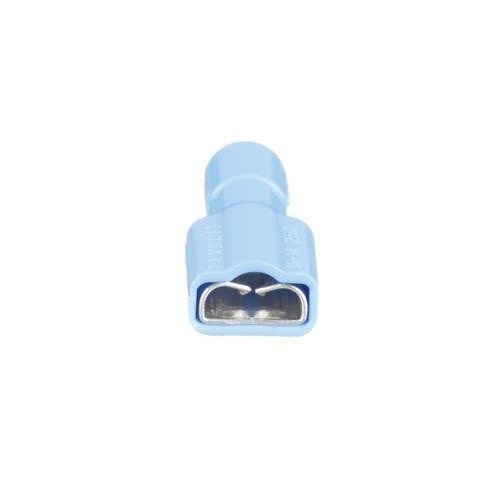

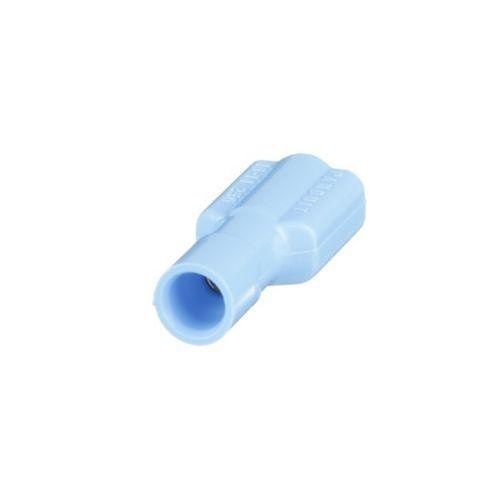

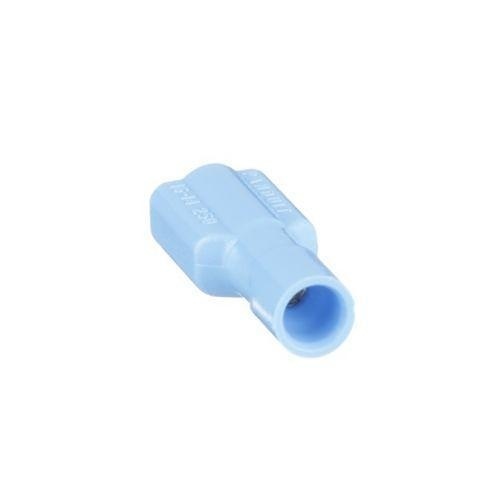

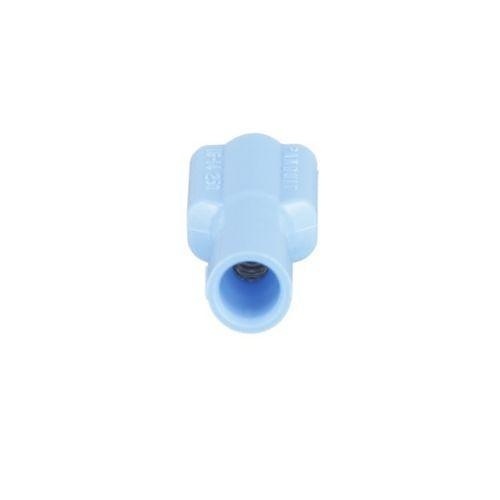

Panduit DPF14-250FIB-C Female Disconnect Premium Nylon Fully Insulated Connector
DPF14-250FIB-C|P9-14250FIBC
Panduit DPF14-250FIB-C Female Disconnect Premium Nylon Fully Insulated Connector
DPF14-250FIB-C|P9-14250FIBC
Key Features
- Features terminal connector
- Contacts are plated with Tin
Key Features
- Features terminal connector
- Contacts are plated with Tin
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Features terminal connector
- Contacts are plated with Tin
Panduit
Panduit DPF14-250FIB-C Female Disconnect Premium Nylon Fully Insulated Connector
DPF14-250FIB-C | P9-14250FIBC
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The vibration resistant DiscoGrip™ female disconnect is made of brass and is tin-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Main Features
- Features terminal connector
- Contacts are plated with Tin
General Information
Name: Panduit DPF14-250FIB-C Female Disconnect Premium Nylon Fully Insulated Connector
Category: Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-14250FIBC Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number DPF14-250FIB-C Packaged Quantity 100 Product Line DiscoGrip Product Name DiscoGrip Terminal Connector Product Type Terminal Connector
-
Contact Plating Tin
-
Connector Type Quick Disconnect
-
Color Blue Material Brass Width 0.4"
-
Limited Warranty 1-Year
-
Environmentally Friendly Yes Features Strain Relief
