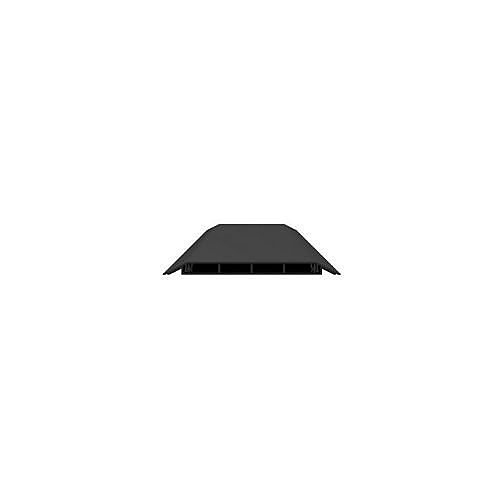

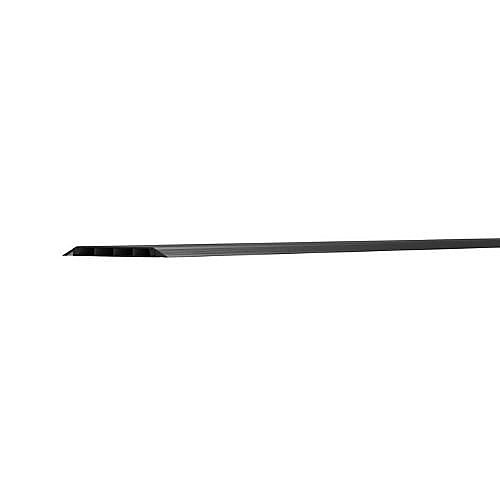

Panduit AFR4BCBL6 Above Floor Raceway Base and Cover, 6', Black
AFR4BCBL6|P9-AFR4BCBL6
Panduit AFR4BCBL6 Above Floor Raceway Base and Cover, 6', Black
AFR4BCBL6|P9-AFR4BCBL6
Key Features
What's Included
- Power rated raceway type
- Tamper-resistant
- Made of PVC
Key Features
What's Included
- Power rated raceway type
- Tamper-resistant
- Made of PVC
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Power rated raceway type
- Tamper-resistant
- Made of PVC

Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Above Floor Raceway non-metallic multi-channel surface raceway shall be used to route, protect, and conceal data, voice, video, fiber optic and power cabling. The raceway shall be listed as suitable for use in applications up to 600 volts between conductors by Underwriters Laboratories, Inc. per standard 5A, and by Canadian Standards Association, Inc. per 22.2 no. 62.1-03, when screw secured and installed per instructions. A full line of fittings is available as well as a junction box to install a variety of communication and electrical devices. Four channel design separates cable types. Standard "screw-on" faceplates for data and power terminations shall be available. Above floor raceway will be manufactured from impact-resistant material with flammability rating of V-0 and must be tamper resistant yet, also allow access for moves, adds and changes. Above Floor Raceway finish shall be pure color, resist scratches and dents, will not peel or corrode and be available in three standard colors. Above Floor Raceway shall be optimized for use with the Panduit® Pan-Net and Net-Key Communication Systems.
Main Features
- Power rated raceway type
- Tamper-resistant
- Made of PVC
- Dimensions (L x W x H) 72" x 6.93" x 0.5"
- Black color
General Information
Name: Panduit AFR4BCBL6 Above Floor Raceway Base and Cover, 6', Black
Category: Panduit, Data Comm & Networking, Cable Management, Cable Raceways
UPC Code: 613056444539
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-AFR4BCBL6 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number AFR4BCBL6 Packaged Quantity 1 Product Line Pan-Way Product Name 6 Foot Above Floor Raceway Base and Cover, Black Product Type Cable Routing
-
Color Black Height 0.50" Material Polyvinyl Chloride (PVC) Width 6.93"
-
Length 72"
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Package Contents - Surface Raceway
- 8 x Concrete Screws
