Panduit
Panduit AFR4BCIW6 Surface / Above Floor Raceway Base and Cover, 6', Office White
AFR4BCIW6 | P9-AFR4BCIW6
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

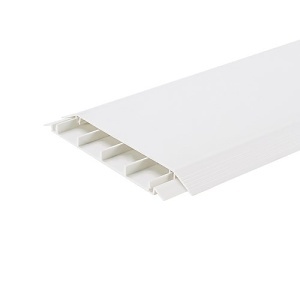

The above-floor raceway is a non-metallic, 4-Channel surface raceway used to route, protect, and conceal data, voice, video, fiber optic and power cabling over floors. The structurally engineered design is ADA compliant, tamper resistant and made of rigid PVC. It is 6' long and is International White.
Main Features
- Meets 2010 American Disability Association standards by design
- Cables in the raceway will satisfy the minimum 1" bend radius requirement, preventing the potential degradation of cable performance; meets TIA/EIA Standard
- Difficult for untrained personnel to enter the raceway or remove faceplates; provides security for communication cabling and safety for power cabling
- Aesthetically pleasing and matches a wide variety of decors with IW (International White) finish
- Lightweight raceway reduces installer fatigue; solid color throughout profile will not chip peel, rust, corrode, or scratch; easy to cut reducing the need for special cutting devices; easy to snap together base and cover; high impact resistance; durable
General Information
Name: Panduit AFR4BCIW6 Surface / Above Floor Raceway Base and Cover, 6', Office White
Category: Panduit, Data Comm & Networking, Cable Management, Cable Raceways
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-AFR4BCIW6 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number AFR4BCIW6 Packaged Quantity 1 Product Line Pan-Way Product Name AFR4BCIW6 Surface Raceway Product Type Cable Routing
-
Color White Height 0.50" Material Polyvinyl Chloride (PVC) Width 6.93"
-
Length 72"
-
Compatibility Panduit Pan-Net and Net-Key Communication Systems Environmentally Friendly Yes Package Contents - 1 x 4-Channel Base
- 1 x 4-Channel Cover
- 8 x HEX Washer Head Concrete Screws
