Panduit LCA6-14-L Compression Connector Lug, 1-Hole, #6AWG, Copper
LCA6-14-L
|P9-LCA614L
Shop all Panduit

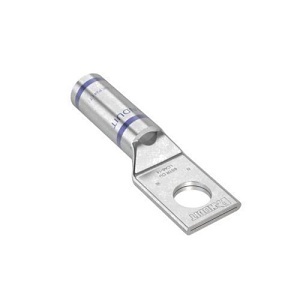

Panduit LCA6-14-L Compression Connector Lug, 1-Hole, #6AWG, Copper
LCA6-14-L | P9-LCA614L
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The LCA6-14-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Main Features
- Tin-Plated Copper for Corrosion Resistance
- One-Hole Standard Barrel Design
- Color-Coded Barrels for Easy Crimp Die Selection
- Inspection Window for Full Conductor Insertion
- UL Listed and CSA Certified to 35 KV
- Temperature Rated to 90°C
General Information
Name: Panduit LCA6-14-L Compression Connector Lug, 1-Hole, #6AWG, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 074983900060
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-LCA614L Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LCA614L Product Line Pan-Lug Product Name Pan-Lug LCA6-14-L Comp. Lug, 6, Tin Plt Copper, Strt, One 1/4" Stud, PK50 Product Type Compression Connector
Material Copper
Color Blue
Diameter 0.3" Length 1.6"
Features Corrosion Resistant
