Overview
Specifications
Documents
Product Overview

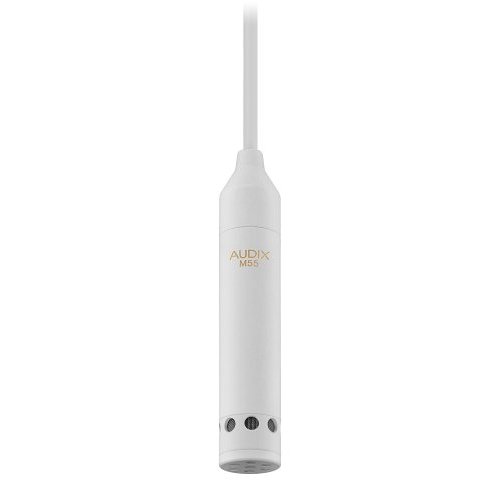

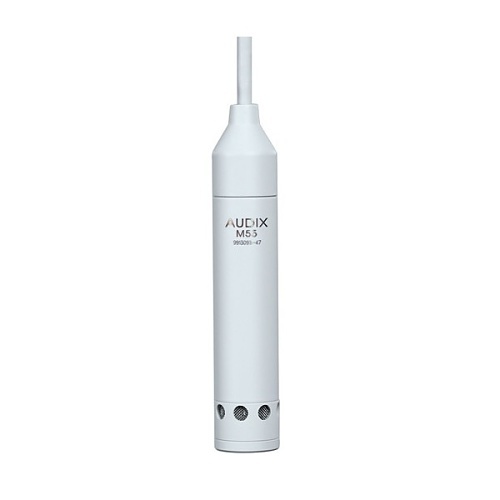

The M55 is an innovative, hanging ceiling microphone system designed for applications where aesthetics, sound quality, and ease of installation are critical. The primary applications for the ceiling mounted M55 include Video Teleconferencing (VTC), distance learning, hospital rooms, surveillance and ambient room miking.
The M55 accommodates interchangeable capsules with cardioid, hypercardioid, omnidirectional and supercardioid (shotgun) coverage patterns. All electronics are fully integrated with high sensitivity and low noise. The signal output is balanced to eliminate RF interference caused by cell phones and mobile devices.

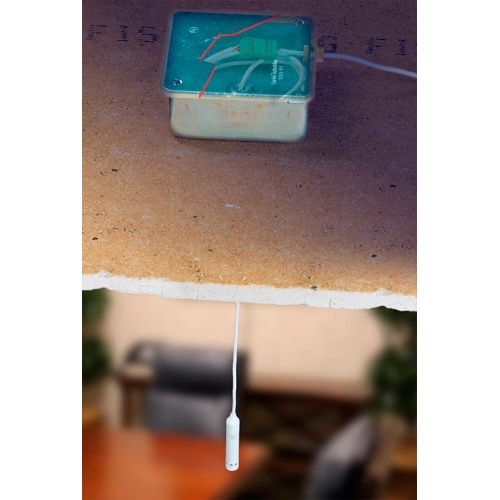

Installing the M55 requires drilling just one 5/8-inch hole in the ceiling, with no additional tools needed. The M55's mounting hardware easily adjusts the hanging height up to four feet from the ceiling surface without removing ceiling tiles. An optional aiming clip (MCHANGER) easily makes any additional angular adjustments. The cable assembly is equipped with terminal block connectors. For installations where plenum rated cable is to be used a UL rated, metal plenum junction box is available.
The M55 accommodates interchangeable capsules with cardioid, hypercardioid, omnidirectional and supercardioid (shotgun) coverage patterns. All electronics are fully integrated with high sensitivity and low noise. The signal output is balanced to eliminate RF interference caused by cell phones and mobile devices.
Installing the M55 requires drilling just one 5/8-inch hole in the ceiling, with no additional tools needed. The M55's mounting hardware easily adjusts the hanging height up to four feet from the ceiling surface without removing ceiling tiles. An optional aiming clip (MCHANGER) easily makes any additional angular adjustments. The cable assembly is equipped with terminal block connectors. For installations where plenum rated cable is to be used a UL rated, metal plenum junction box is available.
Main Features
- High output allows distance miking
- Optimized for voice recognition
- I mmunity from RF interference
- Fingertip height adjustment and rotation control
- Low noise preamp circuitry
- Designed, assembled & tested in the USA
- 3 year warranty
General Information
Name: Audix M55W Adjustable Hanging Ceiling Microphone System, White
Category: Audix, Pro AV, Commercial Audio, Pro Microphones, Headphones & Headsets
UPC Code: 687471292273
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number RA-M55W Brand Name Audix Manufacturer Audix Microphones Manufacturer Part Number M55W Product Line Ceiling Product Model M55W Product Name M55W Microphone Product Series M55 Product Type Microphone Weight 2.47oz
-
Connectivity Technology Wired Host Interface Terminal Block Impedance 150 ohms Polar Pattern Cardioid
-
Maximum Frequency Response 10 kHz Minimum Frequency Response 60Hz
-
TAA Compliant Yes
-
Microphone Technology Condenser Microphone Type Condenser
-
Application/Usage Ambient Miking, Boardroom, Hospital, Surveillance, Video Conferencing Cable Length 4' Color White Form Factor Ceiling Mount, Hanging
-
Length 2.1"
-
Limited Warranty 3-Year
-
Country of Origin US Package Contents - M55W Microphone
- CONN170F - 1' Integrated Mic Cable with Terminal Block Connector
- CONN170M - Mating Terminal Connector for Solder-less Connection
- and more below
