Tripp Lite DCTM Full Motion Ceiling Mount for 23" to 42" TVs and Monitors

Brand: Tripp Lite by Eaton
ADI #:TC-DCTM Model #: DCTM  Name: Tripp Lite DCTM Full Motion Ceiling Mount for 23" to 42" TVs and Monitors
  • Suspends a flat-panel television, monitor or other display from the ceiling, which saves valuable wall and floor space. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants.
  • Fits most flat-panel displays from 23 to 42 in.
  • One-touch adjustment for comfortable viewing

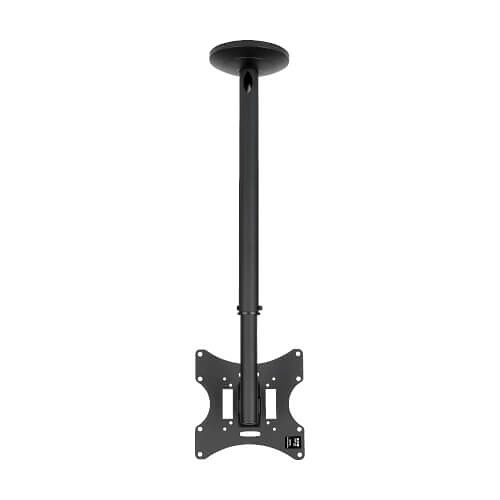

Image of TC-DCTM

Product Overview

The DCTM Full Motion Ceiling Mount saves valuable wall and floor space by suspending your flat-panel television, monitor or other display from the ceiling. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 23 to 42 inches.
The DCTM adjusts with one easy touch to customize your viewing at any time. A 90° swivel and -20° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
The durable all-metal pole extends from 24 to 34 inches and supports up to 66 pounds. The scratch-resistant powder-coated finish tolerates frequent handling and blends with any décor. Installation hardware is included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 100 x 200 mm and 200 x 200 mm.

General Information

Name : Tripp Lite DCTM Full Motion Ceiling Mount for 23" to 42" TVs and Monitors , Tripp Lite by Eaton
Category : Pro Display Mounts
UPC Code : 037332223456
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : TC-DCTM
Brand Name : Tripp Lite by Eaton
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : DCTM
Packaged Quantity : 1
Product Model : DCTM
Product Name : Full-Motion Ceiling Mount
Product Type : Ceiling Mount
Weight (Approximate) (g) : 2503.83

Technical Information

Device Supported : Flat Panel Display
Material : Steel
Maximum Load Capacity : 66 lb
Maximum Load Capacity (g) : 29937.096
Maximum Screen Size Supported (mm) : 1066.8

Physical Characteristics

Color : Black
Color Family : Black
Depth : 6.5"
Depth (mm) : 165.1
Height : 23"
Height (mm) : 584.2
VESA Mount Compatible : Yes
VESA Mount Standard : 100 x 100, 100 x 200, 200 X 200, 75 x 75
Weight (Approximate) : 5.52 lb
Width : 6.5"
Width (mm) : 165.1

Product Information

Maximum Screen Size Supported : 42"
Minimum Screen Size Supported : 23"
Minimum Screen Size Supported (mm) : 584.2
Number of Displays Supported : 1

Warranty

Limited Warranty : 5 year

Miscellaneous

Environmental Certification : ROHS
Environmentally Friendly : Yes
Features : Adjustable Viewing Angle, Articulating, Durable, Extendable, Scratch Resistant, Swivel, Tilt
Package Contents : <ul><li>Full-Motion Ceiling Mount</li><li>Mounting Hardware</li><li>Owner's Manual</li></ul>
TAA Compliant : No
