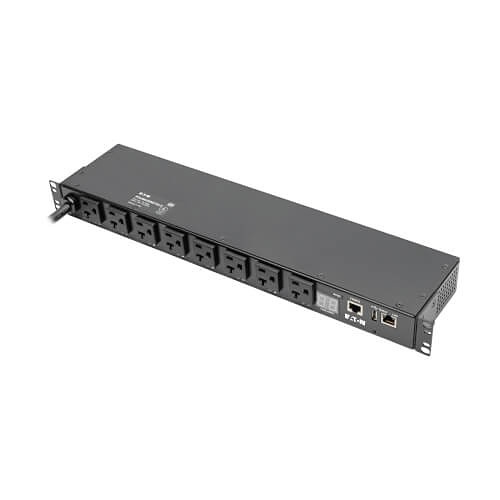

Image of TC-PDUMH20N2
Shop all Eaton Tripp Lite

Eaton Tripp Lite PDUMH20NET2LX Single-Phase Switched PDU with LX Interface, 12' (3.66m) Cord, 1.9kW, 120V 16A, NEMA 5-15/20R Outlets, L5-20P/5-20P Input, 1U, TAA

PDUMH20NET2LX|TC-PDUMH20N2
Shop all Eaton Tripp Lite

Eaton Tripp Lite PDUMH20NET2LX Single-Phase Switched PDU with LX Interface, 12' (3.66m) Cord, 1.9kW, 120V 16A, NEMA 5-15/20R Outlets, L5-20P/5-20P Input, 1U, TAA

PDUMH20NET2LX|TC-PDUMH20N2
Key Features
What's Included
  • 1.9kW 120V Switched rack PDU with Single-Phase input
  • Remote control and monitoring of individual outlets
  • NEMA L5-20P Plug with 12' Cord and 5-20P adapter
Key Features
What's Included
  • 1.9kW 120V Switched rack PDU with Single-Phase input
  • Remote control and monitoring of individual outlets
  • NEMA L5-20P Plug with 12' Cord and 5-20P adapter

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • 1.9kW 120V Switched rack PDU with Single-Phase input
  • Remote control and monitoring of individual outlets
  • NEMA L5-20P Plug with 12' Cord and 5-20P adapter
Eaton Tripp Lite

Eaton Tripp Lite PDUMH20NET2LX Single-Phase Switched PDU with LX Interface, 12' (3.66m) Cord, 1.9kW, 120V 16A, NEMA 5-15/20R Outlets, L5-20P/5-20P Input, 1U, TAA

PDUMH20NET2LX | TC-PDUMH20N2

Please sign in to view pricing and availability and to add to cart.

Accessories

Software & Licenses
Eaton Tripp Lite WEXT3E Extended Warranty, 3-Year
ADI # TC-WEXT3E
MODEL # WEXT3E
Eaton Tripp Lite
Eaton Tripp Lite WEXT3E Extended Warranty, 3-Year
WEXT3E|TC-WEXT3E
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

The PDUMH20NET2LX 1.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime. The 1U PDU features eight switched NEMA 5-15/20R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12' (3.66m) cord with NEMA L5-20P plug and 5-20P plug adapter connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The single-phase PDU installs in 1U of space in EIA-standard 19" racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.

Main Features

  • 1.9kW 120V Switched rack PDU with Single-Phase input
  • Remote control and monitoring of individual outlets
  • NEMA L5-20P Plug with 12' Cord and 5-20P adapter
  • Digital ammeter for real-time PDU load reporting
  • Pre-installed WEBCARDLX for enhanced remote management
  • Supports IPv4, IPv6, HTTP, HTTPS, SNMP, and more
  • Immediate alert notifications via email or SNMP traps
  • Flexible mounting options; 1U, 0U, wall, under-counter

General Information

Name: Eaton Tripp Lite PDUMH20NET2LX Single-Phase Switched PDU with LX Interface, 12' (3.66m) Cord, 1.9kW, 120V 16A, NEMA 5-15/20R Outlets, L5-20P/5-20P Input, 1U, TAA
Category: Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 037332203281
Country of Origin: Taiwan. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
