Eaton Tripp Lite PDUMV20HVNETLX 3.7kW Single-Phase Switched PDU, LX Interface, 208/230V Outlets (20 C13 and 4 C19), C20/L6-20P, 0U
PDUMV20HVNETLX
|TC-PDUMV20H
Shop All Eaton Tripp Lite
Eaton Tripp Lite PDUMV20HVNETLX 3.7kW Single-Phase Switched PDU, LX Interface, 208/230V Outlets (20 C13 and 4 C19), C20/L6-20P, 0U
PDUMV20HVNETLX | TC-PDUMV20H
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

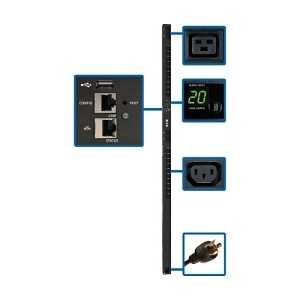

The PDUMV20HVNETLX 3.3-3.7kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10' (3.05m) cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19" racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Specifications
ADI Part Number TC-PDUMV20H Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number PDUMV20HVNETLX Product Model PDUMV20HVNETLX Product Name PDUMV20HVNETLX 24-Outlet PDU Product Type PDU
PDU Type Switched Phase Single Phase Receptacle Detail 20 x IEC 60320 C13, 4 x IEC 60320 C19 Receptacle Type IEC 60320 C13, IEC 60320 C19
TAA Compliant Yes
Depth 3" Mounting Orientation Vertical Rack Height 0U Width 2"
Input Voltage 230V AC Plug/Connector Type IEC 60320 C20, NEMA L6-20P
Mount Type Rack Mount
Limited Warranty 2-Year
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes
