Image of TC-U36K4IND

Eaton Tripp Lite U360-004-IND 4-Port Rugged Industrial USB 3.0 SuperSpeed Hub 15kV ESD Immunity Metal Case, Mountable, Type-A, Black

U360-004-IND|TC-U36K4IND

Eaton Tripp Lite U360-004-IND 4-Port Rugged Industrial USB 3.0 SuperSpeed Hub 15kV ESD Immunity Metal Case, Mountable, Type-A, Black

U360-004-IND|TC-U36K4IND
Key Features
What's Included
  • 4-Port Industrial-Grade USB 3.0 Hub
  • Supports SuperSpeed USB 3.0 (5Gbps)
  • Durable Metal Housing for Harsh Conditions
Key Features
What's Included
  • 4-Port Industrial-Grade USB 3.0 Hub
  • Supports SuperSpeed USB 3.0 (5Gbps)
  • Durable Metal Housing for Harsh Conditions

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • 4-Port Industrial-Grade USB 3.0 Hub
  • Supports SuperSpeed USB 3.0 (5Gbps)
  • Durable Metal Housing for Harsh Conditions
Eaton Tripp Lite

Eaton Tripp Lite U360-004-IND 4-Port Rugged Industrial USB 3.0 SuperSpeed Hub 15kV ESD Immunity Metal Case, Mountable, Type-A, Black

U360-004-IND | TC-U36K4IND

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Tripp Lite's U360-004-IND is a rugged, all metal, USB 3.0 SuperSpeed 4-Port hub is ideal for use in data centers, work areas and Industrial applications. Can be mounted on a wall or din rail with included mounting hardware. Supports SuperSpeed USB 3.0 transfer rates at 5 Gbps, but is also backward compatible to USB 2.0 and 1.1 (480mbps and 12mbps). Hub is bus-powered through the computer connection, or can self power with an external adapter (not included) or via the included 3-wire terminal block connector (9-40V DC).

Features

  • Increases the number of SuperSpeed USB 3.0 ports from a single computer port
  • USB 3.0 compliant with data transfer rates up to 5 Gbps
  • Backward-compatible with USB 2.0 and 1.x
  • Rugged all-metal enclosure designed for use in industrial applications

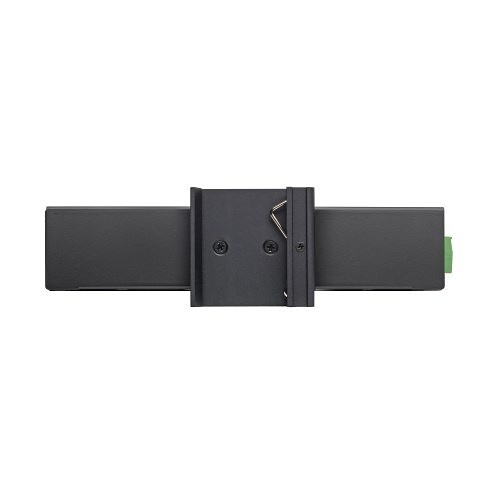

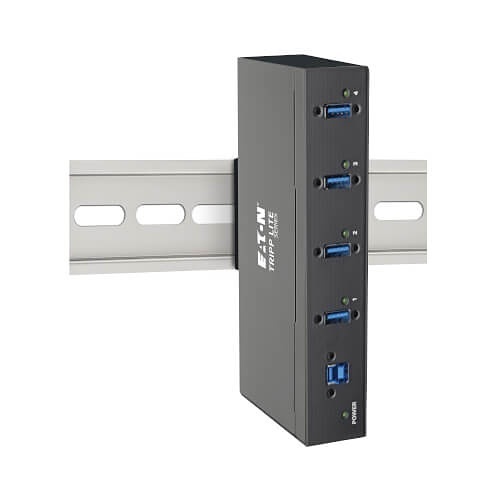

  • Wallmount and DIN rail hardware included for secure installation
  • Three power connection options (source USB port, external power supply (*not included) or 3-wire terminal block)
  • Each USB 3.0 port provides up to 900 mA of power
  • Overcurrent detection and protection
  • Supports 2 kV surge protection per port
  • ESD protection to +/- 20 kV
  • EFT protection to +/- 2.5 kV
  • Automatic link and speed detection
  • Plug-and-play; no software or drivers required

Main Features

  • 4-Port Industrial-Grade USB 3.0 Hub
  • Supports SuperSpeed USB 3.0 (5Gbps)
  • Durable Metal Housing for Harsh Conditions
  • ESD Protection to +/-20 kV
  • Backward Compatible with USB 2.0
  • Plug-and-Play, No Software Required
  • Flexible Power and Mounting Options
  • 900 mA Charging per Port
  • Overcurrent Protection per Port

General Information

Name: Eaton Tripp Lite U360-004-IND 4-Port Rugged Industrial USB 3.0 SuperSpeed Hub 15kV ESD Immunity Metal Case, Mountable, Type-A, Black
Category: Data Comm & Networking, Hubs, Routers & Switches, USB Hubs
UPC Code: 037332186317
Country of Origin: China. Country of origin is subject to change.
