EnabledOvrC is a free, cloud-based remote management and monitoring platform. From
setup to support, OvrC empowers
professionals to install, monitor and
troubleshoot connected devices remotely,
helping you deliver world-class support from
anywhere. Learn more.Araknis Networks AN-220-SW-F-8-POE 220 Series Managed Layer 2 Gigabit Switch with Partial PoE+, 8-Ports, Front Facing Ports
AN-220-SW-F-8-POE|V6-AN22SWF8
Araknis Networks AN-220-SW-F-8-POE 220 Series Managed Layer 2 Gigabit Switch with Partial PoE+, 8-Ports, Front Facing Ports
AN-220-SW-F-8-POE|V6-AN22SWF8
Key Features
- 8-Port Managed Layer 2 Gigabit Switch
- Partial PoE+ with up to 30W per port
- 1Gbps speed on all ports
Key Features
- 8-Port Managed Layer 2 Gigabit Switch
- Partial PoE+ with up to 30W per port
- 1Gbps speed on all ports
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 8-Port Managed Layer 2 Gigabit Switch
- Partial PoE+ with up to 30W per port
- 1Gbps speed on all ports
Araknis Networks

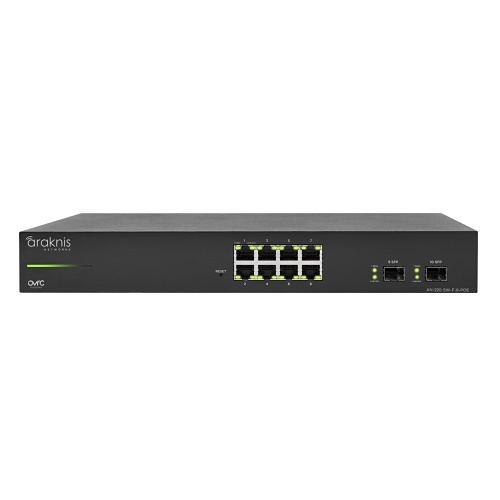

Araknis Networks AN-220-SW-F-8-POE 220 Series Managed Layer 2 Gigabit Switch with Partial PoE+, 8-Ports, Front Facing Ports
AN-220-SW-F-8-POE | V6-AN22SWF8
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
For installs that require PoE on a budget, opt for the Araknis 220 series switch. With it, you get a sizable power budget and full PoE+ capability on all ports, up to 30W. 1Gbps speed across all ports allows for powerful connectivity, while a user-friendly GUI and multiple mounting options ensure a quick and easy install. As with all Araknis switches, you have remote management capability via OvrC®. When it comes to operation, this switch has it all, including plug and play capability, multiple mounting options, and a sleek, 1U design.
Main Features
- 8-Port Managed Layer 2 Gigabit Switch
- Partial PoE+ with up to 30W per port
- 1Gbps speed on all ports
- User-friendly GUI for easy management

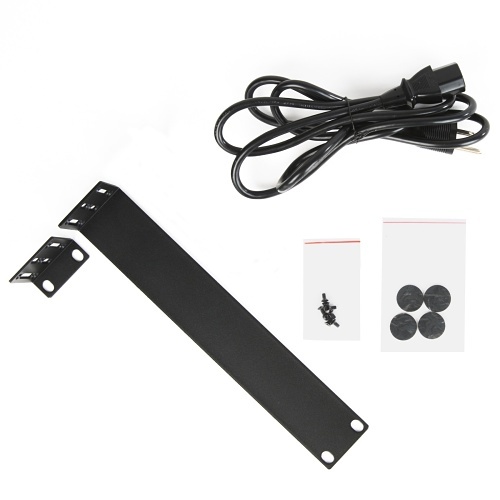

- Multiple mounting options available
- Remote management via OvrC
- Plug and play capability
- Sleek 1U design
- Simple and easy plug-and-play installation
- 5-Year Limited Warranty
General Information
Name: Araknis Networks AN-220-SW-F-8-POE 220 Series Managed Layer 2 Gigabit Switch with Partial PoE+, 8-Ports, Front Facing Ports
Category: Araknis Networks, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches, ADI Exclusive
UPC Code: 842822063821
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number V6-AN22SWF8 Brand Name Araknis Networks Manufacturer Part Number AN-220-SW-F-8-POE OvrC Enabled Yes Product Series 220 Series Product Type Network Switch
-
Power Consumption 417.67W|42.67W
-
Operating Humidity 10-90% Operating Temperature (T-T) 32-122°F
-
Number of Ports 44
-
Network Management Dual FW Image, FW Upgrade: TFTP, HTTP, OvrC, Persistent Logging, Port Mirroring: One to One, Many to One, Remote Logging, SNTP
-
Security Features Port Security (MAC-based)|802.1x-PNAC (Port-based)|IP Source Guard|RADIUS|HTTPS and SSL|SSH v2.0|MAC Filter
-
Flash Memory 256MB
-
Dimensions 12.99" x 1.73" x 9.05" Rack Depth 16.14" Rack Height 1U Rack Width 19"
-
Maximum Power Consumption 82.81W PoE (RJ-45) Port 8 Power over Ethernet (PoE) Yes
-
Certifications CE, FCC, UL
