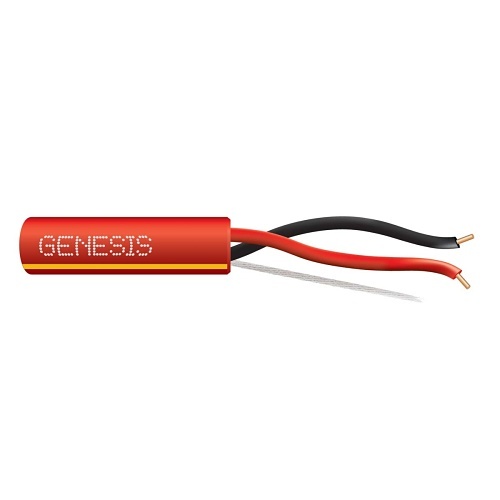

Genesis 4513104Y 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
4513104Y|WG-4513104Y
Genesis 4513104Y 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
4513104Y|WG-4513104Y
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket

Genesis
Genesis 4513104Y 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
4513104Y | WG-4513104Y
Please sign in to view pricing and availability and to add to cart.
Recommended
RN-2001106 | RN-2001106
Sign In for Dealer Pricing
ADI PRO RN-2003506 14/2 Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 500', Wooden Reel, Red
RN-2003506 | RN-2003506
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 4513104Y 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 886618132001
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-4513104Y Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 4513104Y Packaged Quantity 1 Product Model 4513104Y Product Name 4513104Y - 14 AWG 2C Sol Plenum, Red w Yellow Stripe, 1000 ft. Reel Product Type Fire Alarm Cable Weight 32.60 lb
-
American Wire Gauge 14AWG Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 14/2 Device Supported Fire Alarm Jacket Material LS PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-
Cable Length 1000' Color Red with Yellow Stripe Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
