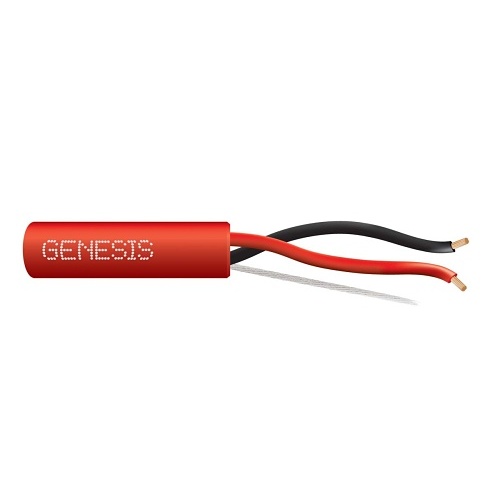

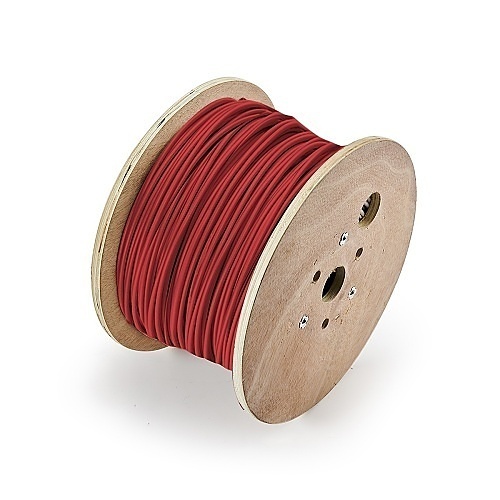

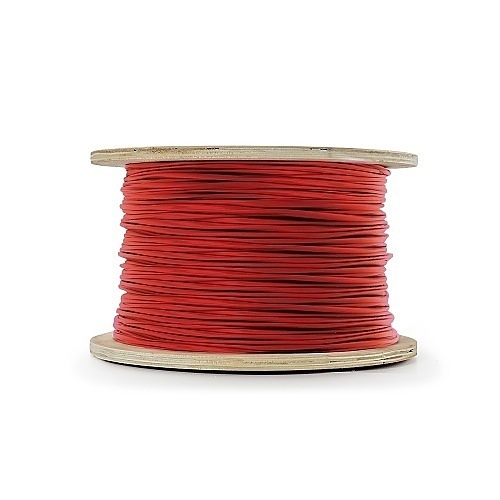

Genesis 45231004 16/2 Stranded Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
45231004|WG-45231004
Genesis 45231004 16/2 Stranded Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
45231004|WG-45231004
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Genesis
Genesis 45231004 16/2 Stranded Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
45231004 | WG-45231004
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 45231004 16/2 Stranded Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 781410934290
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-45231004 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 45231004 Packaged Quantity 1 Product Model 45231004 Product Name 16 AWG 2 Stranded Conductors, Plenum FPLP Product Type Fire Alarm Cable
-
American Wire Gauge 16AWG Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Core/Cladding Diameter 16/2 Device Supported Fire Alarm Jacket Material LS PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 1000' Color Red Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
