Overview
Specifications
Documents
Product Overview
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.
Main Features
- 100 to 240 V AC
- IEEE 802.3af and 802.3at
- Outdoor-ready, IP66/67- and NEMA 4X-rated
- Railway compliant EN 50121-4 and IEC 62236-4
General Information

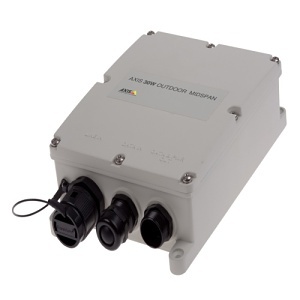

Name: AXIS 30W Outdoor Ready IP66-/IP67-Rated Midspan
Category: Axis Communications, Video Surveillance, Data Comm & Networking, Networking Devices, PoE Devices, PoE Injectors, PoE Injectors
UPC Code: 7331021069473
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-01944001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 01944-001 Product Model 30W Product Name AXIS 30W OUTDOOR MIDSPAN Product Type Power over Ethernet Weight 3.09lb
-
Ingress Protection Rating IP67 NDAA Compliant Yes
-
Operating Temperature (T-T) -40-65°C
-
Input Ports 10/100/1000Base-T Output Ports PoE
-
Security Features GS-Mark|IEC/EN 60950-1|IEC/EN 62368-1|IEC/EN 60950-22|UL 60950-1|UL 60950-22
-
ADI Part Number Replaces Z4-5030231, Z4-5030234 Model Number Replaces 5030-231, 5030-234
-
Depth 5.5" Form Factor Pole Mount, Wall Mount Height 2.4" Width 6.7"
-
Input Voltage 120V AC, 230V AC Maximum Frequency 60 Hz Maximum Output Power 30W Maximum Output Voltage 54 V DC Minimum Frequency 50Hz PoE Budget 30W Power over Ethernet (PoE) Yes
-
Protection Type Surge Protection
-
Limited Warranty 3-Year
-
Certifications EAC, EN 55024, EN 55032 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS CISPR 32 Class B, VCCI Class B Compatibility AXIS Door Controllers:, A1001, A1601AXIS Fixed Cameras:, A9161, A9188-VEAXIS Illuminators:, C1310-E, C1410AXIS Thermal Cameras:, D2110-VE Security RadarAXIS Speakers:, F34 Main Unit, F34 Surveillance system, F41 Main Unit, F44 Dual Audio InputAXIS PTZ Cameras:, I8016-LVEAXIS Modular Cameras:, Long Range PoE Extender KitAXIS Power Over Ethernet:, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, M3015, M3016, M3037-PVE, M3057-PLVE, M3057-PLVE Mk II, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3077-PLVE, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, M5054, M5055, M5065, M5525-E, M7104, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1280-E, P1290-E, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1435-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3807-PVE, P5414-E, P5415-E, P5654-E, P5655-E, P7304, P8815-2AXIS PoE Extenders:, P9106-V, PoE Splitter 5 VAXIS Security Radars:, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LEAXIS Fixed Dome Cameras:, Q1941-E, Q1941-E PT Mount, Q1942-E, Q1942-E PT Mount, Q2901-E, Q2901-E PT MountAXIS Video Encoders:, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-EAXIS People Counters:, Q7411, Q7424-R Mk II, Q9216-SLVAXIS Housings:, T90C20 Fixed Dome IR-LED, T90D20 PoE IR-LED, T90D25 PoE W-LEDAXIS Intercoms:, T92E20 Outdoor Housing, T92G20 Outdoor Housing, T93F20 Outdoor HousingAXIS I/O Relay Modules: Country of Origin CN Environmental Certification IEC/EN 60529 IP67, NEMA 250 Type 4X Package Contents - 30W Outdoor Midspan
- Installation Guide
