Evolution EVSP1013 HMDI 1x3 Splitter over CAT5e/CAT6 Cable with Additional HMDI Output

Brand: Evolution by Vanco
ADI #:ZX-EVSP1013 Model #: EVSP1013  Name: Evolution EVSP1013 HMDI 1x3 Splitter over CAT5e/CAT6 Cable with Additional HMDI Output

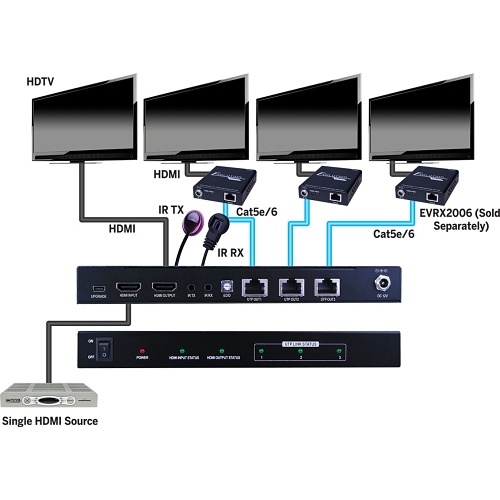

  • Allows for 1 HDMI input to be split and sent to 4 different displays
  • (3) RJ45 output ports with POE Functionality can connect to the EVRX2006 POE Receiver (sold separately) over Cat5e/Cat6 cable to transmit 1080p @60Hz video with audio and control up to 164ft/50m
  • Power over the Cat5e/Cat6 so that the EVRX2006 receivers do not require a power supply

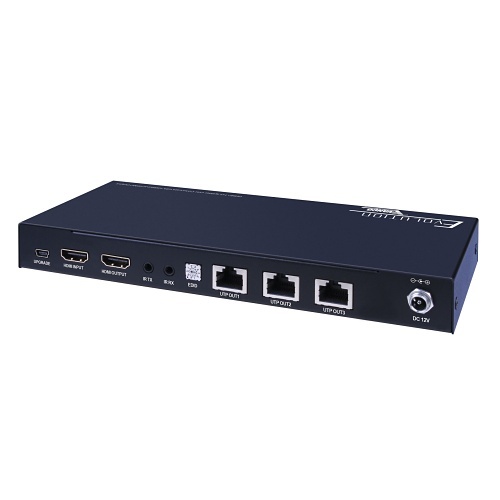

Vanco EVSP1013 Splitter

Product Overview

Main Features:

  • Allows for 1 HDMI input to be split and sent to 4 different displays
  • (3) RJ45 output ports with POE Functionality can connect to the EVRX2006 POE Receiver (sold separately) over Cat5e/Cat6 cable to transmit 1080p @60Hz video with audio and control up to 164ft/50m
  • Power over the Cat5e/Cat6 so that the EVRX2006 receivers do not require a power supply
  • Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
  • Supports 20-60kHz wideband bi-direction IR communication
  • Dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks
  • Supports multiple audio formats including Dolby True HD- DTS-master- etc.
  • Supports all 3D Signal Formats
  • Supports manual or dynamic EDID management
  • HDCP 2.0 compatible
  • Dimensions: 8.1″ W x 1″ H x 3.5″ D
  • Patent No. 9,710,038 B1
Main Features
  • Allows for 1 HDMI input to be split and sent to 4 different displays
  • (3) RJ45 output ports with POE Functionality can connect to the EVRX2006 POE Receiver (sold separately) over Cat5e/Cat6 cable to transmit 1080p @60Hz video with audio and control up to 164ft/50m
  • Power over the Cat5e/Cat6 so that the EVRX2006 receivers do not require a power supply
  • Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
  • Supports 20-60kHz wideband bi-direction IR communication
  • Dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks
  • Supports multiple audio formats including Dolby True HD- DTS-master- etc.
  • Supports all 3D Signal Formats
  • Supports manual or dynamic EDID management
  • HDCP 2.0 compatible

General Information

Name : Evolution EVSP1013 HMDI 1x3 Splitter over CAT5e/CAT6 Cable with Additional HMDI Output , Evolution by Vanco
Category : HDMI Splitters
UPC Code : 741835105460
Country of Origin : Taiwan. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : ZX-EVSP1013
Brand Name : Evolution by Vanco
Manufacturer : Vanco International, Inc
Manufacturer Part Number : EVSP1013
Product Line : Evolution
Product Model : EVSP1013
Product Name : EVSP1013 Splitter
Product Type : IR Receiver

Technical Information

Maximum Operating Distance : 164'
USB : Yes

Display & Graphics

Maximum Video Resolution : 1920 x 1080

Interfaces/Ports

HDMI In : Yes
HDMI Out : Yes
Network (RJ-45) : yes
Number of HDMI Inputs : 1
Number of HDMI Outputs : 1
Number of Network (RJ-45) Ports : 3

Media & Performance

Maximum Operating Distance (mm) : 50000

Physical Characteristics

Depth : 3.5"
Depth (mm) : 88.9
Height (mm) : 25.4
Width : 8.1"
Width (mm) : 205.74

Power Description

Input Voltage (V DC) : 12

Miscellaneous

Package Contents : <ul> <li>EVSP1013 Splitter</li> <li>1 x IR Blasters (TX)</li> <li>1 x IR Receiver (RX)</li> <li>1 x DC 12V 2A Power Supply</li> <li>Product Manual</li> </ul>
