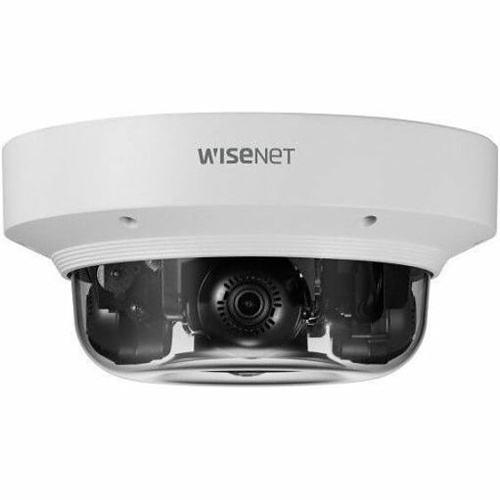

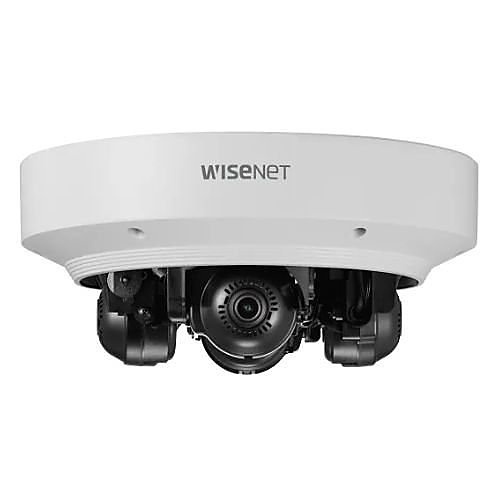

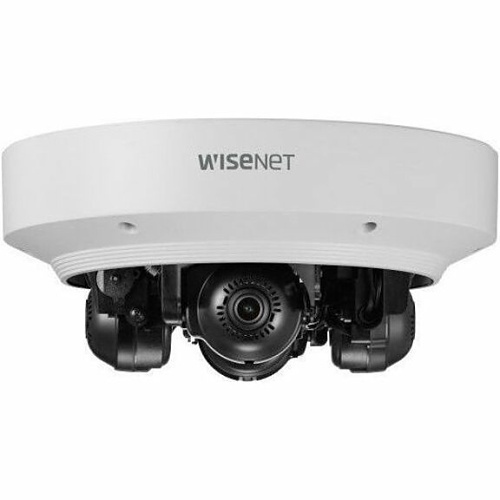

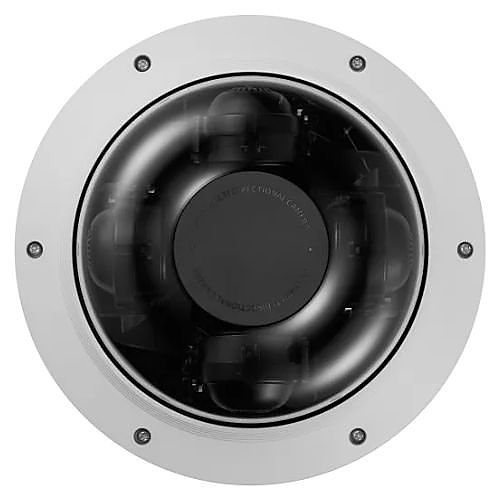

Hanwha PNM-9084QZ1/KUS Series x 2MP Multi-Directional PTRZ IP Camera, 3-6mm Motorized Varifocal Lens, White, TAA Compliant
PNM-9084QZ1/KUS|SQ-984QZ1KUS
Hanwha Vision
Hanwha PNM-9084QZ1/KUS Series x 2MP Multi-Directional PTRZ IP Camera, 3-6mm Motorized Varifocal Lens, White, TAA Compliant
PNM-9084QZ1/KUS|SQ-984QZ1KUS
Key Features
- Maximum 8MP at 60 fps, 2MP X 4 sensors using one IP address
- Motorized vari-focal 3.0~ 6 mm (FOV 107⁰ ~ 56.3⁰)
- Full 90⁰"look down" tilt capability
Key Features
- Maximum 8MP at 60 fps, 2MP X 4 sensors using one IP address
- Motorized vari-focal 3.0~ 6 mm (FOV 107⁰ ~ 56.3⁰)
- Full 90⁰"look down" tilt capability
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Maximum 8MP at 60 fps, 2MP X 4 sensors using one IP address
- Motorized vari-focal 3.0~ 6 mm (FOV 107⁰ ~ 56.3⁰)
- Full 90⁰"look down" tilt capability
Hanwha Vision
Hanwha PNM-9084QZ1/KUS Series x 2MP Multi-Directional PTRZ IP Camera, 3-6mm Motorized Varifocal Lens, White, TAA Compliant
PNM-9084QZ1/KUS | SQ-984QZ1KUS
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
Capture Advance
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WattBox
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WattBox
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
The PNM-9084QZ1 has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-9084RQZ1 and PNM-9085RQZ1 support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting. PNM-9084QZ1 became compact and lighter for easier installation. It’s cost-efficient four channel PTRZ camera.
Main Features
- Maximum 8MP at 60 fps, 2MP X 4 sensors using one IP address
- Motorized vari-focal 3.0~ 6 mm (FOV 107⁰ ~ 56.3⁰)
- Full 90⁰"look down" tilt capability
- Triple codec H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 120dB At 2MP at 60fps
- 4x MicroSD/SDHC/SDXC Memory Card slots, one for each channel
- Alarm I/O, Audio I/O
- Power HPoE (IEEE802.3bt), injector included
- IP66, IK10, NEMA4X
General Information
Name: Hanwha PNM-9084QZ1/KUS Series x 2MP Multi-Directional PTRZ IP Camera, 3-6mm Motorized Varifocal Lens, White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code:
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-984QZ1KUS Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number PNM-9084QZ1/KUS Product Model PNM-9084QZ1/KUS Product Name 8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera Product Series P Product Type Camera Weight 6.6lb
-
Connectivity Technology Wired Effective Camera Resolution 8MP Field of View H: 107°-56.3°, V: 57°-31.5°, D: 126°-64.3° Lens Type Varifocal Maximum Aperture f/2.2 Maximum Frame Rate 60fps Minimum Focal Length 3mm Optical Zoom 2x Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 TAA Compliant Yes
-
Maximum Video Resolution 1920 x 1080 Number of Sensors 4
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 90% RH
-
Longest Shutter Speed 2 Second Minimum Illumination 0.004 lux Shortest Shutter Speed 1/12,000 Second
-
Network (RJ-45) Yes
-
Focal Length 3-6 mm Lens Included Yes Maximum Focal Length 6 mm Minimum Aperture f/3.1
-
Remote Management Yes
-
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome
-
Diameter 9.88" Mount Type Ceiling Mount, Conduit Mount, Desktop Mount, Gang Box Mount, Pendant Mount, Rack Mount, Wall Mount
-
Recording Formats Full HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin KR Features 4x microSD/SDHC/SDXC Memory Card slots, one for each channel, Full 90° "look down" tilt capability, Hallway view, Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area, Maximum 8MP at 60fps, 2MP X 4 sensors using one IP address, Motorized PTRZ function allows for simple adjustment of camera positioning remotely, ideal for difficult to reach locations. Easily adjust Pan around the track, Tilt, rotation, zoom and focus, Motorized vari-focal 3.0- 6mm (FOV - 107° - 56.3°), Triple codec - H.265, H.264 and MJPEG multiple streaming, WDR 120dB at 2MP at 60fps, WiseStream II compression technology Impact Protection Rating IK10
