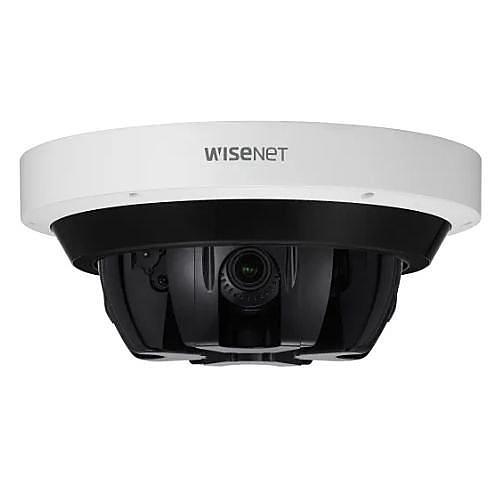

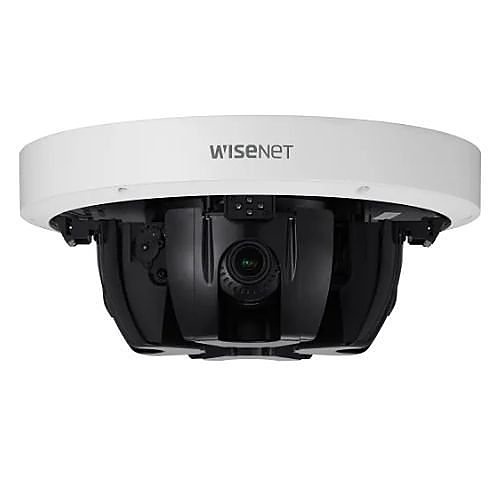

Product Overview
The PNM-9084QZ1 has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-9084RQZ1 and PNM-9085RQZ1 support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting. The PNM-9084RQZ1 / PNM-9085RQZ1 has built-in IR sensors to each of the four lenses. Each lens and its IR sensors move together when users control the lenses, producing clear images from up to 30 meters even in low-light environments.
General Information
Name : Hanwha PNM-9084RQZ1/KUS Series x 2MP Multi-Directional PTRZ IP Camera, 3.2-10mm Motorized Varifocal Lens, White, TAA Compliant , Hanwha Vision
Category : Panoramic Cameras
UPC Code :
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-984RQZ1KS
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : PNM-9084RQZ1/KUS
Product Model : PNM-9084RQZ1
Product Name : 8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera
Product Series : P
Product Type : Network Camera
Weight (Approximate) (g) : 5200
Technical Information
Effective Camera Resolution : 2MP
Field of View : H: 109.0°(Wide)~33.2°(Tele), V: 57.4°(Wide)~18.7°(Tele), D: 132.0°(Wide)~38.0°(Tele)
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.6
Maximum Focal Length (mm) : 10
Maximum Frame Rate : 60 fps
Minimum Focal Length : 3.20 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 3.2x
Camera
Night Vision Distance : 98.43 ft
Night Vision Distance (mm) : 30000
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 1920 x 1080
Number of Sensors : 4
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : yes
Lens
Lens Included : Yes
Maximum Focal Length : 10 mm
Minimum Aperture : f/2.9
Physical Characteristics
Color : White
Diameter (mm) : 315
Weight (Approximate) : 11.46 lb
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 12.4"
Mount Type : Desk Mount, Rack Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 3.2
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 60
Warranty
Limited Warranty : 3 year
Miscellaneous
Features : Audio Detection, Day/Night, Defog, Digital Image Stabilization, Face Detection, Human Detection, Motion detection, Shock Detection, Tamper Detection, Vehicle Detection, Wide Dynamic Range
Impact Protection Rating : IK10
Ingress Protection Rating : IP66
TAA Compliant : yes
