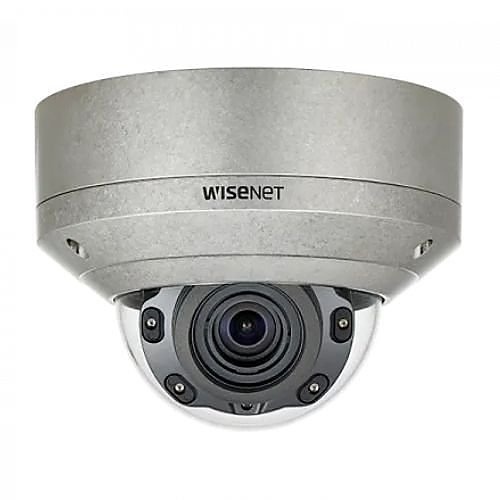

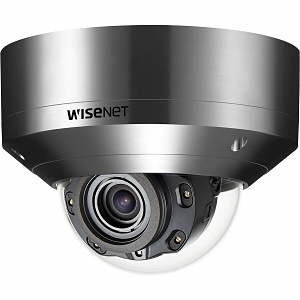

Hanwha XNV-8080RSA/KUS Series 5MP Outdoor IR Vandal Dome IP Camera, 3.9-9.4mm Varifocal Lens, Stainless Steel, TAA Compliant
XNV-8080RSA/KUS|SQ-XV88RSAKU
Hanwha XNV-8080RSA/KUS Series 5MP Outdoor IR Vandal Dome IP Camera, 3.9-9.4mm Varifocal Lens, Stainless Steel, TAA Compliant
XNV-8080RSA/KUS|SQ-XV88RSAKU
Key Features
- 5MP (2560 x 1920) resolution
- 3.9 ~ 9.4 mm (2.4x) motorized varifocal lens
- 30 fpsatall resolutions (H.265 / H.264)
Key Features
- 5MP (2560 x 1920) resolution
- 3.9 ~ 9.4 mm (2.4x) motorized varifocal lens
- 30 fpsatall resolutions (H.265 / H.264)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 5MP (2560 x 1920) resolution
- 3.9 ~ 9.4 mm (2.4x) motorized varifocal lens
- 30 fpsatall resolutions (H.265 / H.264)
Hanwha Vision
Hanwha XNV-8080RSA/KUS Series 5MP Outdoor IR Vandal Dome IP Camera, 3.9-9.4mm Varifocal Lens, Stainless Steel, TAA Compliant
XNV-8080RSA/KUS | SQ-XV88RSAKU
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Network Video Recorders (NVRs)
ADI # VM-0NVR8CH2T
MODEL # VM-0NVR8CH2T
VM-0NVR8CH2T|VM-0NVR8CH2T
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
Main Features
- 5MP (2560 x 1920) resolution
- 3.9 ~ 9.4 mm (2.4x) motorized varifocal lens
- 30 fpsatall resolutions (H.265 / H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover
- Dual SD/SDHC/SDXC memory slots (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 50m, IP66, IP6K9K, NEMA 4X, IK10+
General Information
Name: Hanwha XNV-8080RSA/KUS Series 5MP Outdoor IR Vandal Dome IP Camera, 3.9-9.4mm Varifocal Lens, Stainless Steel, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras
UPC Code:
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-XV88RSAKU Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNV-8080RSA/KUS Product Model XNV-8080RSA/KUS Product Name 5MP Stainless Steel IR Vandal Dome Product Series X Product Type Dome Camera Weight 6.17 lb
-
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View H: 92.1°-38.7°, V: 67.2°-29.0°, D: 119.9°-48.6° Lens Type DC Auto Iris, P-iris Maximum Aperture f/1.3 Maximum Frame Rate 30 fps Minimum Focal Length 3.9mm Night Vision Yes Night Vision Type Infrared Optical Zoom 2.4x Video Formats H.264, H.264B, H.264H, H.264M, H.265, H.265B, H.265H, H.265M, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 164.04 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP6K9K TAA Compliant Yes
-
Maximum Video Resolution 2560 x 1920
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity <90% RH
-
Longest Shutter Speed 1/12000 Second Shortest Shutter Speed 2 Second
-
Network (RJ-45) Yes
-
Focal Length 3.9-9.4 mm Lens Included Yes Maximum Focal Length 9.4 mm Minimum Aperture f/2.4
-
Remote Management Yes
-
Color Silver Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome
-
Input Voltage 12V DC, 24V AC
-
Diameter 6.4" Mount Type Desktop Mount, Rack Mount, Wall Mount
-
Storage Type Memory Card
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin KR Features Audio Compression, Auto Tracking, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Face Detection, Motion Detection, Privacy Masking Impact Protection Rating IK10 Indoor/Outdoor Outdoor
