Product Overview
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
General Information

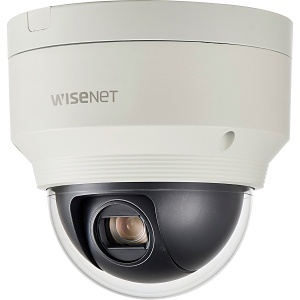

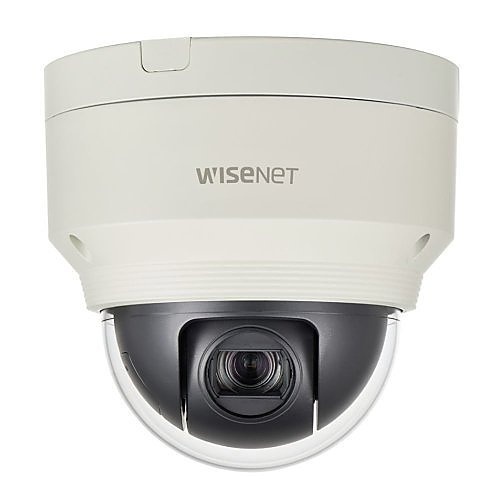

Name : Hanwha XNP-6120H/KME Series 2MP Outdoor WDR Mini PTZ Dome IP Camera, 12x Optical Zoom Lens, White, TAA Compliant , Hanwha Vision
Category : PTZ Security Cameras
UPC Code : 8801089188311
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-XP612HKME
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : XNP-6120H/KME
Product Model : XNP-6120H
Product Name : 2M Full HD 12x Network PTZ Dome Camera
Product Series : X
Product Type : Network Camera
Weight (Approximate) (g) : 1900
Technical Information
Effective Camera Resolution : 2MP
Field of View : H: 54.58°(Wide) ~ 5.30°(Tele) / V: 32.19°(Wide) ~ 3.00°(Tele)
HD Recording : Yes
Lens Mount Type : Board Mount
Lens Type : Varifocal
Maximum Aperture : f/1.6
Maximum Focal Length (mm) : 62.4
Maximum Frame Rate : 60 fps
Minimum Focal Length : 5.20 mm
Optical Zoom : 12x
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -22°F (-30°C)
Minimum Operating Temperature (°F) : -22
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : yes
Lens
Lens Included : Yes
Maximum Focal Length : 62.40 mm
Minimum Aperture : f/3
Physical Characteristics
Color : White
Diameter (mm) : 168
Durability : Vandal resistant
Form Factor : Dome
Height : 6.4"
Height (mm) : 161.5
Weight (Approximate) : 4.19 lb
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 6.6"
Mount Type : Desk Mount, Rack Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 5.2
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 60
Warranty
Limited Warranty : 3 year
Miscellaneous
Features : Audio Detection, Day/Night, Defog, Digital Image Stabilization, Face Detection, Human Detection, Motion detection, Shock Detection, Tamper Detection, Vehicle Detection, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : outdoor
Ingress Protection Rating : IP66
TAA Compliant : yes
