Product Overview

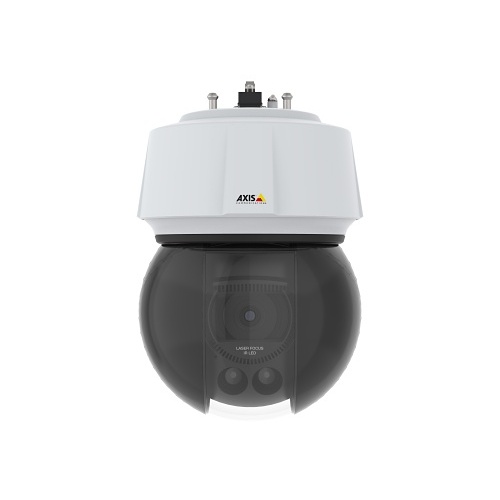

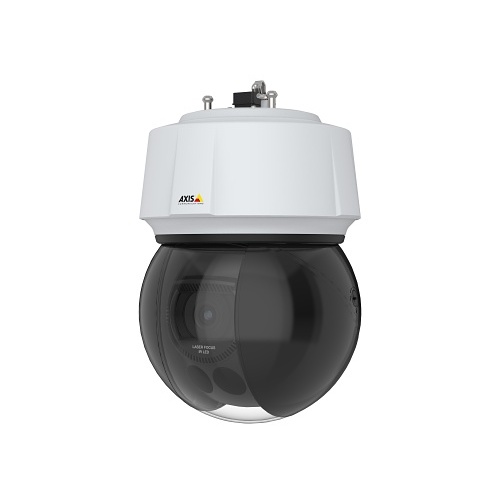

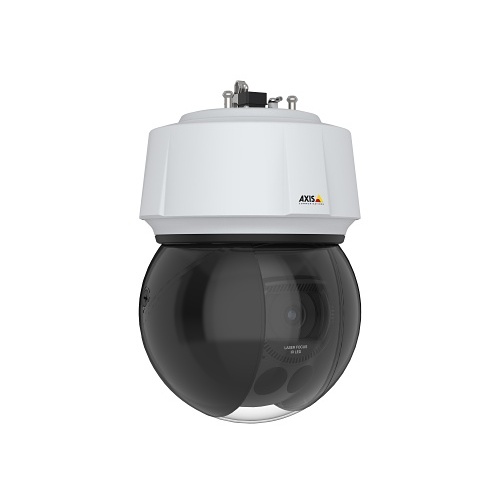

AXIS Q6315-LE is a high-speed PTZ camera offering HDTV 1080p resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With 31x optical zoom, laser focus for precise focus and quick-zoom functionality, it allows you to easily follow fast-moving objects. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image. Furthermore, the TPM module ensures secure storage of all cryptographic keys and certificates.
General Information
Name : AXIS Q6315-LE Q63 Series 1080p HDTV Outdoor PTZ IR IP Camera, 31x Optical Zoom, White (Replaces Q6115-E) , AXIS Communications
Category : PTZ Security Cameras
UPC Code : 7331021072398
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-01925004
Brand Name : Axis Communications
Connectivity Technology : Wired
Manufacturer : Axis Communications
Manufacturer Part Number : 01925-004
NDAA Compliant : Yes
Product Model : Q6315-LE
Product Name : Q6315-LE PTZ Network Camera
Product Type : Network Camera
Weight (Approximate) (g) : 4808.079
Technical Information
Effective Camera Resolution : 2MP
Field of View : Horizontal field of view: 60.6°- 2.0° - Vertical field of view: 36.5°- 1.1°
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.36
Maximum Focal Length (mm) : 214.64
Maximum Frame Rate : 60 fps
Minimum Focal Length : 6.91 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 31x
Camera
Night Vision Distance : 984.25 ft
Night Vision Distance (mm) : 300000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 1920 x 1080
Minimum Illumination (lux) : 0.001
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Maximum Operating Temperature (°F) : 122
Minimum Operating Temperature : -58°F (-50°C)
Minimum Operating Temperature (°F) : -58
Operating Humidity : 100%
Exposure
Longest Shutter Speed : 1/2 Second
Minimum Illumination : 0 lux
Shortest Shutter Speed : 1/111000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 214.64 mm
Lens Included : Yes
Maximum Focal Length : 214.64 mm
Minimum Aperture : f/4.6
Physical Characteristics
Color : White
Diameter (mm) : 192
Durability : Dust Resistant, Vandal Resistant, Water Resistant
Form Factor : Dome
Height : 10.3"
Height (mm) : 261
Weight (Approximate) : 10.60 lb
Power Description
Input Voltage : 100V AC, 240V AC
Input Voltage (V AC) : 100, 240
Product Information
Diameter : 7.6"
Mount Type : Bracket Mount, Ceiling Mount, Corner Mount, Parapet Mount, Pendant Mount, Pole Mount, Recessed Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 6.91
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 60
Warranty
Limited Warranty : 5 Year
Miscellaneous
Features : Auto Tracking, Automatic Defog, Automatic White Balance, Built-in IR LED, Cross Line Detection, Day/Night, Electronic Image Stabilization, HTTPS Encryption, Human Detection, Password Protection, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66, IP67
Package Contents : <ul> <li>AXIS Q6315-LE PTZ Network Camera</li> <li>Installation Guide</li> <li>Windows Decoder 1-user License</li> <li>60 W Midspan (Including Power Cable)</li> <li>IP66 Rated Network Connector</li> <li>Repaint Template</li> <li>Paint Paper</li> </ul>
TAA Compliant : Yes
