AXIS Q1942-E PT Mount for Thermal Bullet IP Camera, 19mm, 30 fps, Aluminum Casing, White
Q1942-E|Z4-0983001
AXIS Q1942-E PT Mount for Thermal Bullet IP Camera, 19mm, 30 fps, Aluminum Casing, White
Q1942-E|Z4-0983001
Key Features
- Axis Zipstream
- Electronic Image Stabilization
- PT mount-ready
Key Features
- Axis Zipstream
- Electronic Image Stabilization
- PT mount-ready
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Axis Zipstream
- Electronic Image Stabilization
- PT mount-ready
Axis Communications
AXIS Q1942-E PT Mount for Thermal Bullet IP Camera, 19mm, 30 fps, Aluminum Casing, White
Q1942-E | Z4-0983001
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Network Video Recorders (NVRs)
ADI # VM-LVR16CH0T
MODEL # VM-LVR16CH0T
VM-LVR16CH0T|VM-LVR16CH0T
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

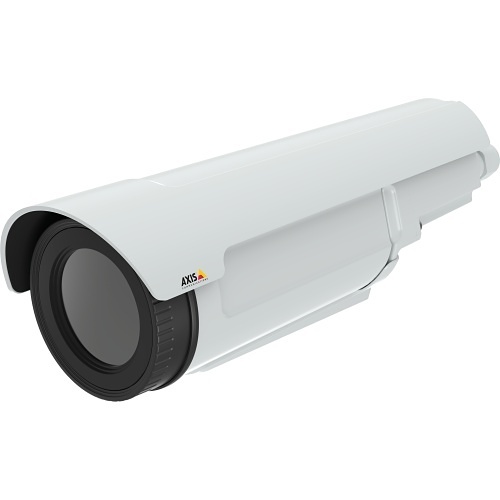

The bullet-style, outdoor-ready AXIS Q1942-E PT Mount offers the possibility of mounting the camera on a pan/tilt motor to increase installation flexibility. The thermal resolution of 640x480 and a range of lenses make it easy to detect and verify people, objects and incidents from pitch dark areas to a sunlit parking lot. A noise filter gives improved thermal image contrast while keeping noise levels low, without adding blur and ghost effects. AXIS Q1942-E PT Mount withstands harsh weather conditions and has a built-in heater for the window. Additionally, it offers Power over Ethernet and has a microSD card slot.
Main Features
- Axis Zipstream
- Electronic Image Stabilization
- PT mount-ready
- Powerful performance for video analytics
- VGA thermal imaging
General Information
Name: AXIS Q1942-E PT Mount for Thermal Bullet IP Camera, 19mm, 30 fps, Aluminum Casing, White
Category: Axis Communications, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code: 7331021058750
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-0983001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 0983-001 Product Line Q Product Model Q1942-E Product Name AXIS Q1942-E PT MOUNT 19MM 30 FPS Product Series Q19 Product Type Thermal cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267
-
Aperture f/1.23 Connectivity Technology Wired Field of View Horizontal, Vertical Lens Type Fixed Maximum Frame Rate 30 fps Video Formats H.264, MJPEG, MPEG-4
-
Image Sensor Type Uncooled Microbolometer Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes
-
Image Sensor Size 640 x 480 Maximum Video Resolution 800 x 600
-
Operating Temperature (T-T) -40-60°C
-
Focal Length 19mm
-
Memory Card Supported Yes
-
Remote Management Yes
-
Color White Durability Dustproof, Waterproof
-
Maximum Power Consumption 13W Power over Ethernet (PoE) Yes
-
Mount Type Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
-
Certifications EN 50121-4, EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 22 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF S Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-52, IEC 60068-2-6, IEC/EN 60529 IP66, MIL-STD-810F (Method 521.2), NEMA 250 Type 4X Indoor/Outdoor Outdoor
