Product Overview

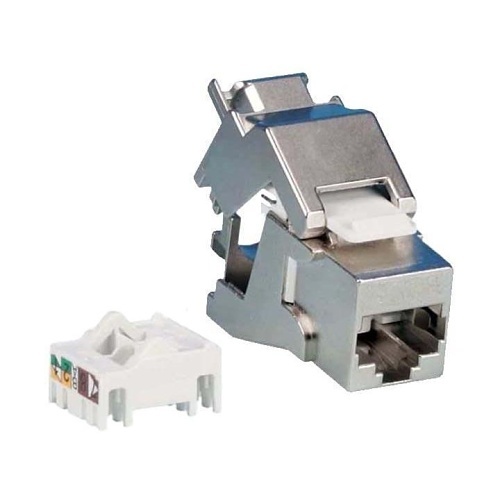

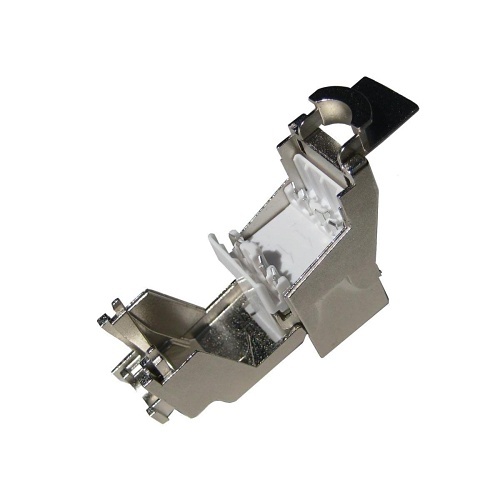

The Dynacom 10606AS CAT6a Tool-Less Data Jack is designed for high-performance data transmission with 10-Gig capability. This FTP shielded jack supports 4PPoE (IEEE802.3bt) standards for robust power delivery across Ethernet. Installation is simplified with a tool-less termination process that requires only a simple flush cutter, eliminating the need for special tools. It is color coded for easy wiring to either T568A or T568B standards and accommodates cables with a maximum outer diameter of 9mm (0.35"). For high-definition applications, the Dynacom 10606A-FTP model is recommended.
Main Features
- 10-Gig Performance
- 4PPoE (IEEE802.3bt) Rated
- Terminate with a Simple Flush Cutter No Special Tools Required
- Color Coded for T568A or B
- Max Cable O.D. 9mm (0.35")
- Check 10606A-FTP For HD Applications
General Information
Name: Dynacom 10606AS CAT6a Tool-Less Data Jack for FTP, Shielded
Category: Dynacom, Data Comm & Networking, Cable Connectors, Inserts & Adapters
UPC Code: 879302008515
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number 17-10606AS Brand Name Dynacom Manufacturer Part Number 10606AS Package Length 0.5
Cable Type Category 6a
Features 10-Gig Performance, 4PPoE (IEEE802.3bt) Rated, Check 10606A-FTP For HD Applications, Color Coded for T568A or B, Max Cable O.D. - 9 mm (0.35"), Terminate with a Simple Flush Cutter No Special Tools Required
