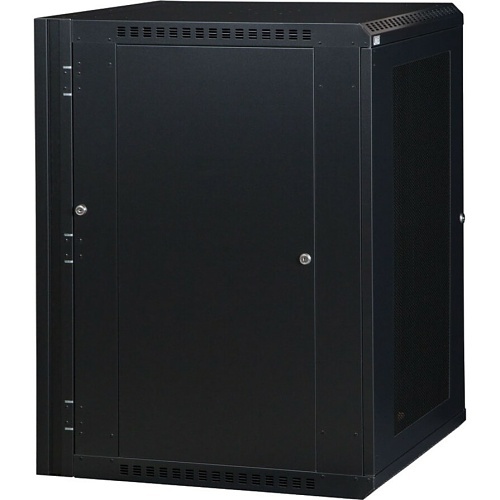

Kendall Howard 3132-3-001-18 18U LINIER Swing-Out Wall Mount Cabinet with Vented Door, Black
3132-3-001-18|27-313230018
Kendall Howard 3132-3-001-18 18U LINIER Swing-Out Wall Mount Cabinet with Vented Door, Black
3132-3-001-18|27-313230018
Key Features
What's Included
- Economical Design Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.
- 90 Degree Swing-Out Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.
- Numerous Laser Knockouts Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
Key Features
What's Included
- Economical Design Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.
- 90 Degree Swing-Out Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.
- Numerous Laser Knockouts Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
Key Features
What's Included
- Economical Design Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.
- 90 Degree Swing-Out Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.
- Numerous Laser Knockouts Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
KENDALL HOWARD
Kendall Howard 3132-3-001-18 18U LINIER Swing-Out Wall Mount Cabinet with Vented Door, Black
3132-3-001-18 | 27-313230018
Please sign in to view pricing and availability and to add to cart.
Accessories
Keystone Jacks
ADI # 0E-C6KEYBL10
MODEL # 0E-C6KEYBL10
0E-C6KEYBL10|0E-C6KEYBL10
Sign In for Dealer Pricing
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WattBox
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WattBox
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
The LINIER® Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don't work around the rack... get a rack that works around you!
- Includes one locking vented door
- Locking side panels
- 150 lb. weight capacity
- One set of cage nut style mounting rails
- 90 degree swing-out
- Mounting depth: 22.5"
- 19" EIA compliant
- Made in the USA
- 5-Year Limited Warranty
Main Features
- Economical Design Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.
- 90 Degree Swing-Out Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.
- Numerous Laser Knockouts Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
- Adjustable Rails The included set of cage nut style rails fully adjust in 1" increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

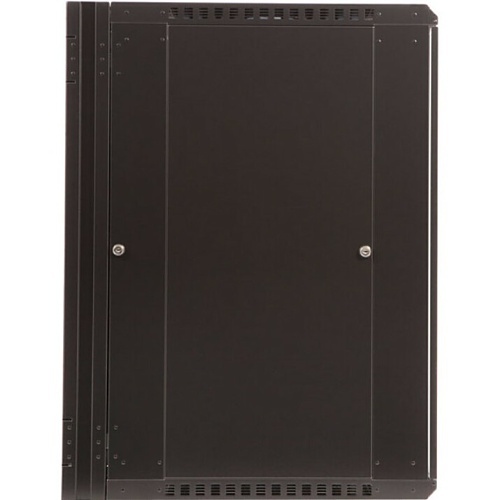

- Removable Side Panels Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

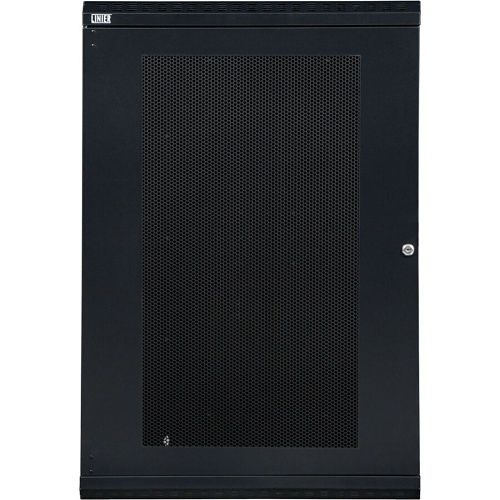

- Reversible Vented Door Vented door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The vented door allows for ventilation for your network system.
General Information
Name: Kendall Howard 3132-3-001-18 18U LINIER Swing-Out Wall Mount Cabinet with Vented Door, Black
Category: KENDALL HOWARD, Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 879447005264
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number 27-313230018 Brand Name KENDALL HOWARD Manufacturer Kendall Howard, LLC Manufacturer Part Number 3132-3-001-18 Product Line LINIER Product Name 18U LINIER Swing-Out Wall Mount Cabinet - Vented Door Product Type Rack Cabinet Weight 82lb
-
Application/Usage LAN Switch, Patch Panel Color Black Depth 26.6" Form Factor Wall Mount Height 35.2" Material CRS Maximum Weight Capacity 150 lb Rack Depth 22.50" Rack Height 18U Rack Width 19" Width 23.5"
-
Limited Warranty 5-Year
-
Country of Origin US Package Contents - 18U LINIER Swing-Out Wall Mount Cabinet - Vented Door
- 1 x Locking Vented Door
