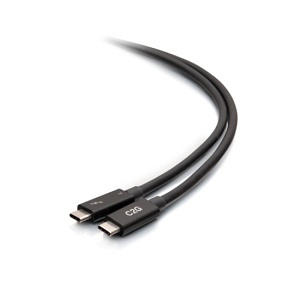

Image of 2D-C2G28887

C2G C2G28887 6' Thunderbolt Active Cable USB to USB 40Gbps, Black

C2G28887|2D-C2G28887

C2G C2G28887 6' Thunderbolt Active Cable USB to USB 40Gbps, Black

C2G28887|2D-C2G28887
Key Features
  • Supports a top data transfer speed of 40 Gbps when connected to Thunderbolt 3 or Thunderbolt 4 devices
  • Supports a single 8K 60Hz display or two 4K 60Hz displays
  • Supports all 'Alt' mode features outputting full DisplayPort, including multi-streaming
Key Features
  • Supports a top data transfer speed of 40 Gbps when connected to Thunderbolt 3 or Thunderbolt 4 devices
  • Supports a single 8K 60Hz display or two 4K 60Hz displays
  • Supports all 'Alt' mode features outputting full DisplayPort, including multi-streaming

Sign In for Dealer Pricing

Become an ADI Customer
System-Sensor-Brand-Page2
Key Features
  • Supports a top data transfer speed of 40 Gbps when connected to Thunderbolt 3 or Thunderbolt 4 devices
  • Supports a single 8K 60Hz display or two 4K 60Hz displays
  • Supports all 'Alt' mode features outputting full DisplayPort, including multi-streaming
C2G by Legrand

C2G C2G28887 6' Thunderbolt Active Cable USB to USB 40Gbps, Black

C2G28887 | 2D-C2G28887

Please sign in to view pricing and availability and to add to cart.

Accessories

Cable Raceways
Image of 0E-75DW2
ADI # 0E-75DW2
MODEL # 0E-75DW2
Sign In for Dealer Pricing
Cable Ties & Straps
W Box Cable Tie
ADI # 0E-HOOKLOOP
MODEL # 0E-HOOKLOOP
Sign In for Dealer Pricing
Conduit
W Box UL Listed Corrugated Flexible Conduit w/ Nylon Pull Tape 1" X 100'
ADI # 0E-RG100100
MODEL # 0E-RG100100
Sign In for Dealer Pricing
Conduit
W Box 0E-RG15050 1 1/2" x 50' Corrugated Flexible Conduit, Orange
ADI # 0E-RG15050
MODEL # 0E-RG15050
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

This Thunderbolt 4 USB-C Cable brings lightning-speed data transfers, 4K video support, and power delivery up to 100W. Get more done with less hassle by carrying one cable for the simplest, most reliable, and fastest connectivity for video, data, and power.

Deliver up to 40Gbps to or from a Thunderbolt 3 or Thunderbolt 4 enabled port. This cable is an ideal solution to transfer large amounts of information, whether uploading or downloading data. It is so fast you can transfer a 5GB file in about a second over the cable.

Stream video and audio with full DisplayPort 2.1 and 'Alt' mode functionality, displaying up to 8K video on a single display or 4K video on two displays for low-latency gaming, immersive creation, and simplified productivity with fantastic contrast and color depth to see photos, videos, and text with unbelievable detail.

Deliver up to 100W of charging power to or from the connected device, like your phone, laptop, or tablet, and other compatible USB devices to charge them quickly.

Connect to a high-speed 10 Gigabit Ethernet network or connect two computers over a peer-to-peer network, allowing for the transfer of large volumes of data from one PC to another, which is ideal when upgrading to a new system.

Connect with confidence, knowing that this Thunderbolt 4 cable has been certified and tested to ensure broad compatibility across Mac®, Windows®, and Chrome OS™ devices.

Additional Technical Specs

Signal Specifications

  1. Resolutions up to 4K (4096 x 2160) at 60Hz
  2. Signal Bandwidth: 40Gbps Bidirectional

Electrical Specifications

  1. Voltage Rating: 30V
  2. Temp Rating: 80°C
  3. Max Conductor Resistance at 20°C (OHMS/KM): 30AWG: 387; 32AWG: 588
  4. Insulation Resistance at 20°C (min): DC-500V 100 KOHM/KM
  5. Dielectric Strength (min): AC-750V/1 Sec.

Physical Specifications

  1. Operating Temperature: 0°C to 50°C; Ambient (Non-Condensing)
  2. Storage Temperature: 0°C to 70°C; Ambient (Non-Condensing)
  3. Operating Temperature (C2G28887 only): -20°C to 85°C; Ambient (Non-Condensing)
  4. Storage Temperature (C2G28887 only): 0°C to 40°C; Ambient (Non-Condensing)
  5. Minimum Bend Radius: 48mm

Main Features

  • Supports a top data transfer speed of 40 Gbps when connected to Thunderbolt 3 or Thunderbolt 4 devices
  • Supports a single 8K 60Hz display or two 4K 60Hz displays
  • Supports all 'Alt' mode features outputting full DisplayPort, including multi-streaming
  • Capable of charging up to 100W and syncing USB-C mobile devices
  • Backward compatible with Thunderbolt 3, USB 3.2, 3.0, and 2.0
  • Thunderbolt Networking allows 10Gb Ethernet connection or peer-to-peer networking between two computers
  • Daisy-chain up to five Thunderbolt 4 devices or six Thunderbolt 3 devices for flexible configurations
  • Tested for quality, meeting Intel's required certification standards

General Information

Name: C2G C2G28887 6' Thunderbolt Active Cable USB to USB 40Gbps, Black
Category: C2G by Legrand, Pro AV, Commercial Connector Cables, Pro USB Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
